Top 10 things you might not know about BricsCAD

If you love BricsCAD you'll know that it's full of brilliant features and functions, but there might be things you're missing out on. Keep reading to find out BricsCAD top 10 hidden secrets.

Quick links:

  1. Views
  2. Clean Screen
  3. You can change the color of BricsCAD
  4. BricsCAD supports 3rd party apps
  5. Custom User Coordinate Systems
  6. You can animate with BricsCAD
  7. Blocks in BricsCAD
  8. Automatic Technical Illustrations
  9. BricsCAD Guided Lessons
  10. BricsCAD Guide Books

1 Views

You're probably already familiar with the Look From control (the small, grey circle in the top righthand corner of the workspace) so you'll already know you can get automatically generated front, left, top front left, etc. But, did you know you can also get Down Back Left views too? Simply hold Ctrl when hovering over the Look From control.

null

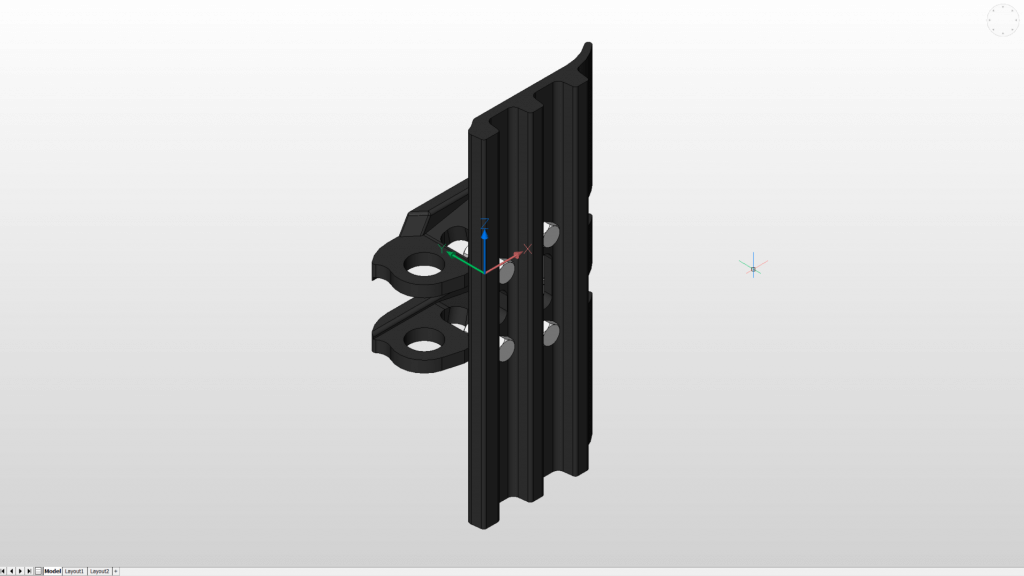

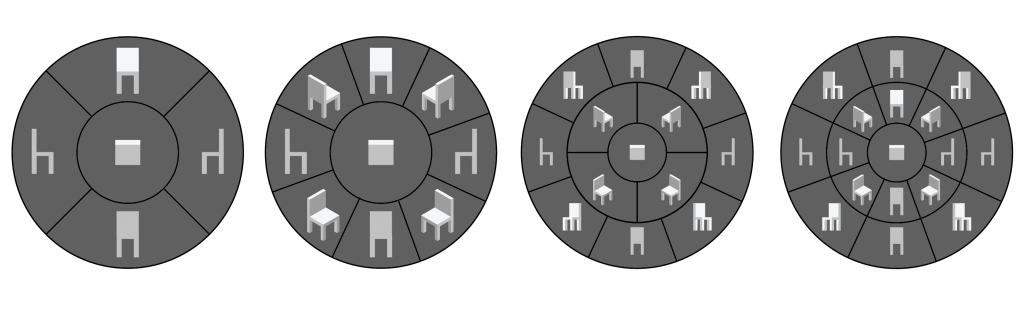

The different view option available in BricsCAD

You can move the Look From Control to any one of the four corners, just right-click the circle and click 'Choose Location'. Moreover, you can change it to rotate mode! Rotate the current view in increments of 15 degrees.

You can even turn it off altogether right-click -- 'Dismiss the settings'.

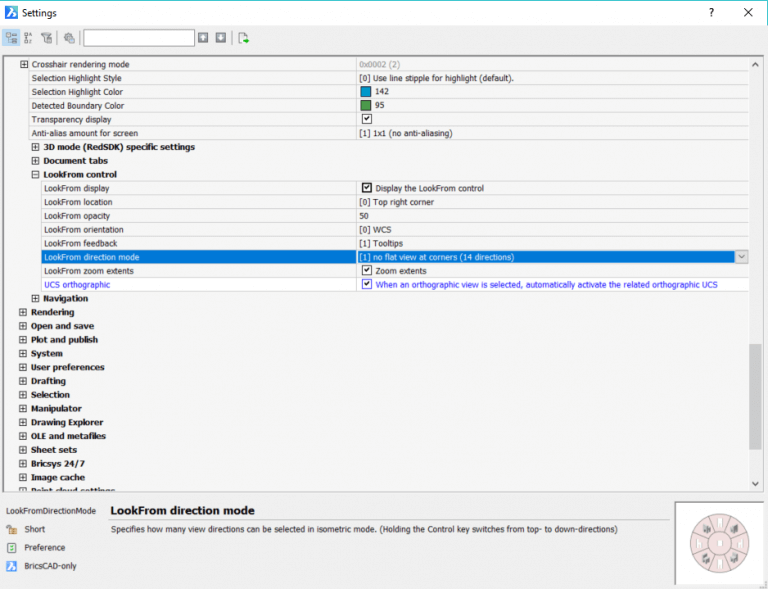

Right-click the Look From Control and you can navigate directly to its settings. Here you can change the transparency and choose from a large number of viewport displays. You also have the option to automatically fit the whole model into the window or keep the current zoom level.

null

2 Clean Screen

null

Hit Ctrl + 0 to automatically lose the Ribbon, command line, panels, etc. This is known as Clean Screen Mode. Alternatively, just enter CLEANSCREENON/CLEANSCREENOFF in the command line.

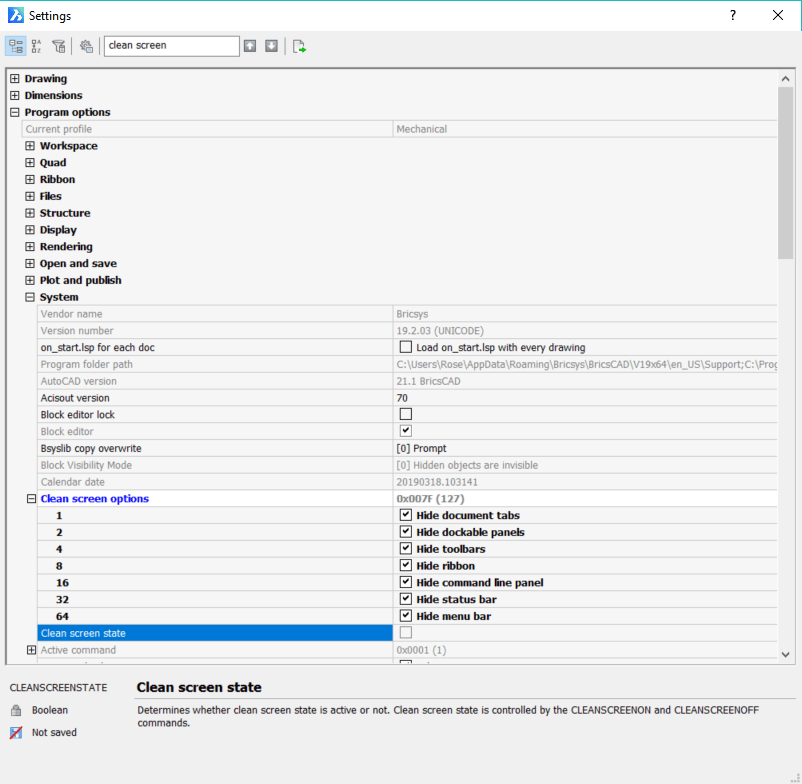

You can get everything back by pressing Ctrl + 0 again. There are 127 different options! You can find them all in Settings -- Program options -- System -- Clean screen options.

null

3 You can change the color of BricsCAD

null

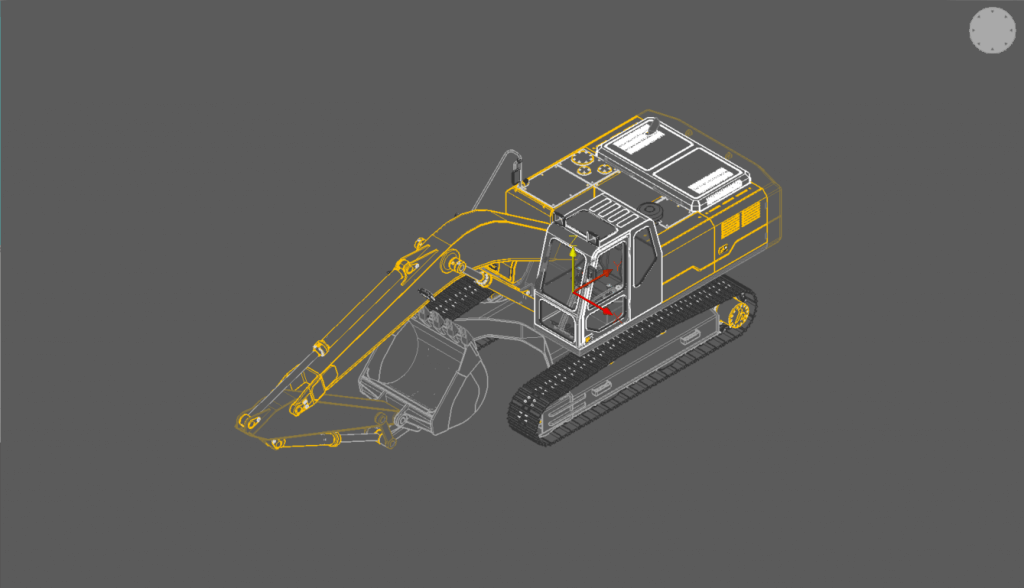

From the background to the Quad, there are lots of options on how to customize your user experience with BricsCAD. Read the full breakdown.

4 BricsCAD supports 3rd party apps

null

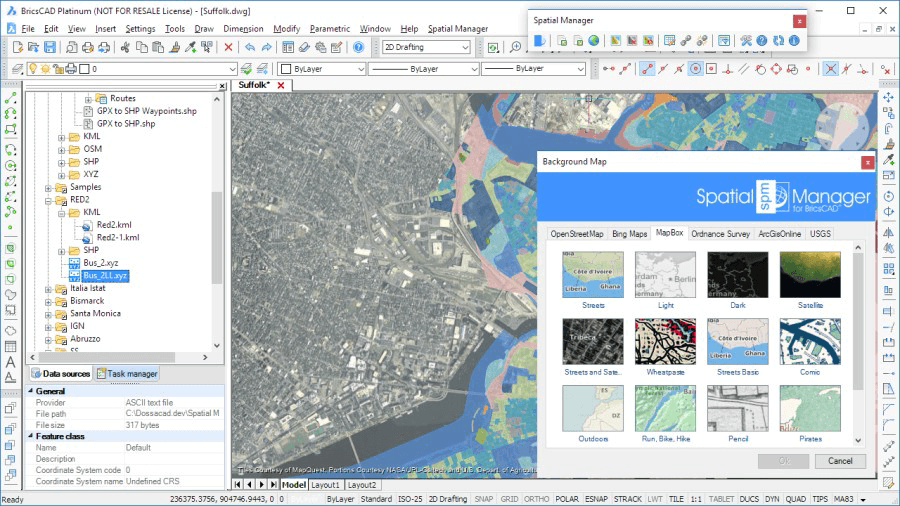

BricsCAD has over 300, 3rd party apps, many of which are free! Find them in the App Store. Choose everything from scaffolding to artisanal lighting. There are tons of ways for you to get even more out of BricsCAD.

5 Custom User Coordinate Systems

null

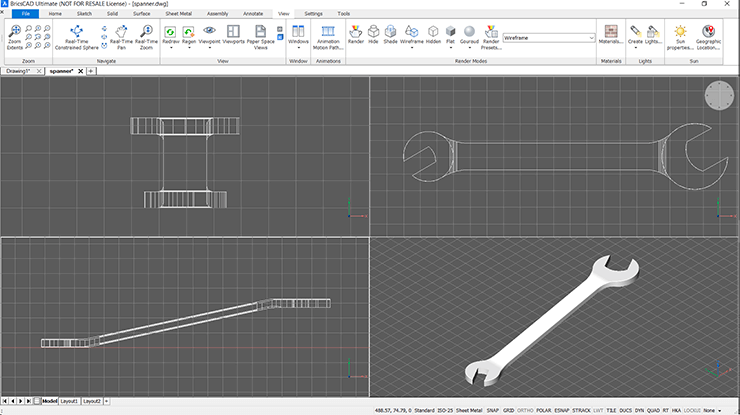

Use UCSORTHO to change the coordinate system as you change the viewport.

There are oodles of intuitive ways to get BricsCAD to draw along a given user coordinate system (UCS). This includes orthographic mode, which allows users to change the drawing plane based on the current view plane. Click here for more information.

6 You can animate with BricsCAD

null

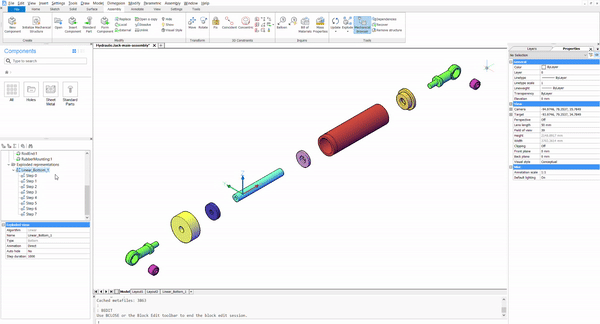

It is possible to animate your exploded representations in BricsCAD

BricsCAD had loads of animation functionalities. From Inverse Kinematics to Array Path. Get your 3D models moving around, learn how.

7 Blocks in BricsCAD

null

Parametric Blocks give a more dynamic approach to creating 2D CAD

Did you know you can create blocks in BricsCAD? BricsCAD blocks are fully parametric which means that they can be created once and then changed for purpose without remodeling from scratch. To get the most from this feature use Parametrize.

7.1 Blockify

You can also automatically create blocks using Blockify. Blockify automatically searches the drawing to find similar geometries and dramatically reduces the size of files. Best of all? It's unique to BricsCAD!

8 Automatic Technical Illustrations

null

All these bombs were placed automatically by BricsCAD Mechanical. The balloons can be arranged in a circle or along a polyline.

With just a few clicks, you can automatically generate 2D isometric drawings with VIEWBASE and annotate your drawings with automatic callouts using BMBALLOON

null

Automatically generated section views

9 BricsCAD Guided Lessons

null

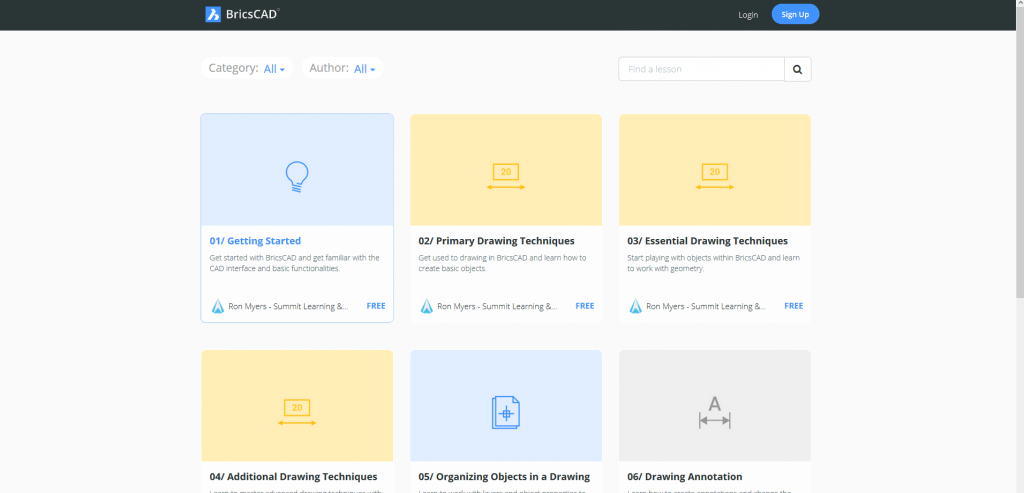

If you're new to CAD, then make sure you check out the BricsCAD Guided Lessons. BricsCAD has a range of online tutorials to get you started. From complete beginner to .dwg master.

10 BricsCAD Guide Books

null

The three new guide books for BricsCAD V19; BricsCAD for AutoCAD users Inside BricsCAD Customizing BricsCAD

BricsCAD has 3, completely free, downloadable "guide books" that guide you through the BricsCAD essentials; Inside BricsCAD, for new users learning CAD and BricsCAD for the first time, Customizing BricsCAD, the Settings and Customize dialog boxes, LISP and VBA programming. BricsCAD for AutoCAD® Users, the similarities and differences between the two CAD programs.
