Fast and Familiar 2D Drafting in BricsCAD Mechanical V25.2

Updating legacy designs is part of the job. BricsCAD Mechanical V25.2 makes it easier to apply precise changes, meet updated specs, and keep work moving without disruption. 

Here’s how BricsCAD V25.2 supports real-world 2D mechanical design challenges—without disrupting what already works.

Start with What You’ve Got

Manufacturers often work from decades worth of DWGs. In BricsCAD V25.2, continuing that work is seamless, especially if you're moving from AutoCAD Mechanical. Open existing assemblies, reuse your libraries, and make component updates with minimal friction.

For example, switching from a one-piece valve stem and disc to a higher-precision two-piece version is straightforward. Thanks to improved DWG interoperability, native BricsCAD components slot easily into legacy drawings.

Smarter Parts List Management

Creating a part reference from an existing block now takes just a few clicks. Balloon annotations? Use the Balloon Annotation tool for fast, clear callouts. And when you update a component, the Parts List Manager automatically reflects the changes. No manual syncing required.

Built in 2D Finite Element Analysis

Before you prototype, simulate.

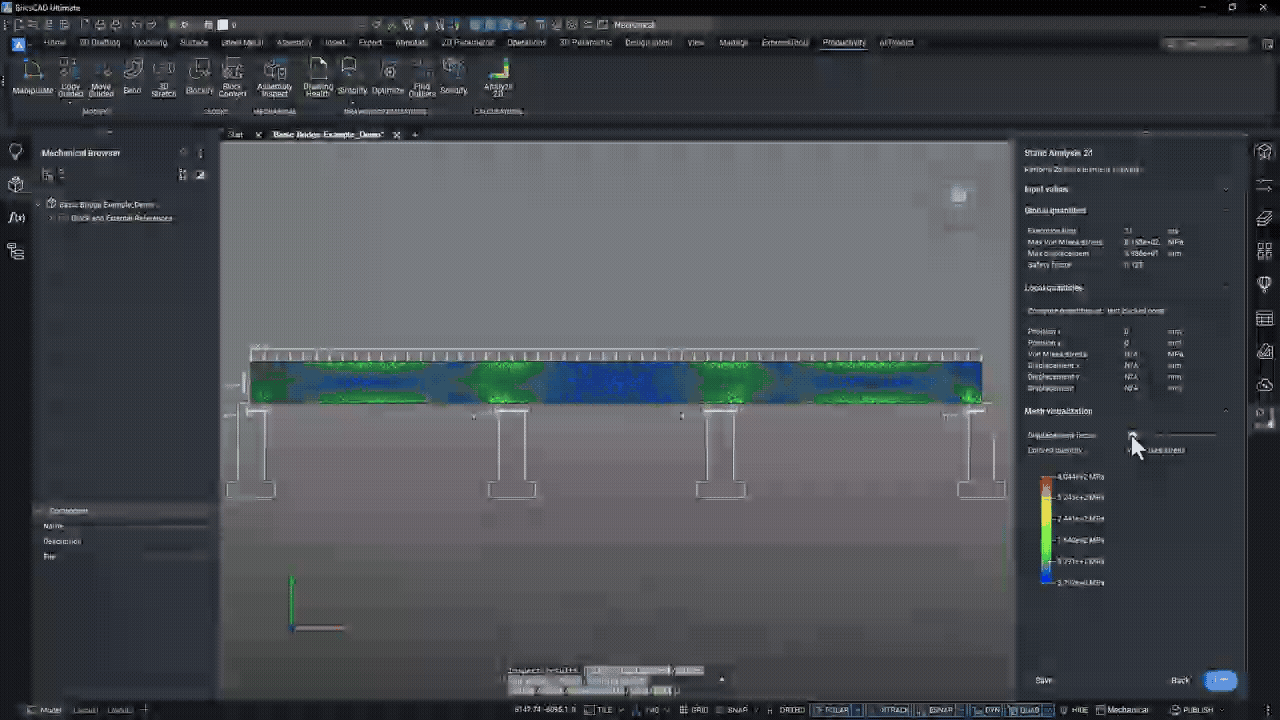

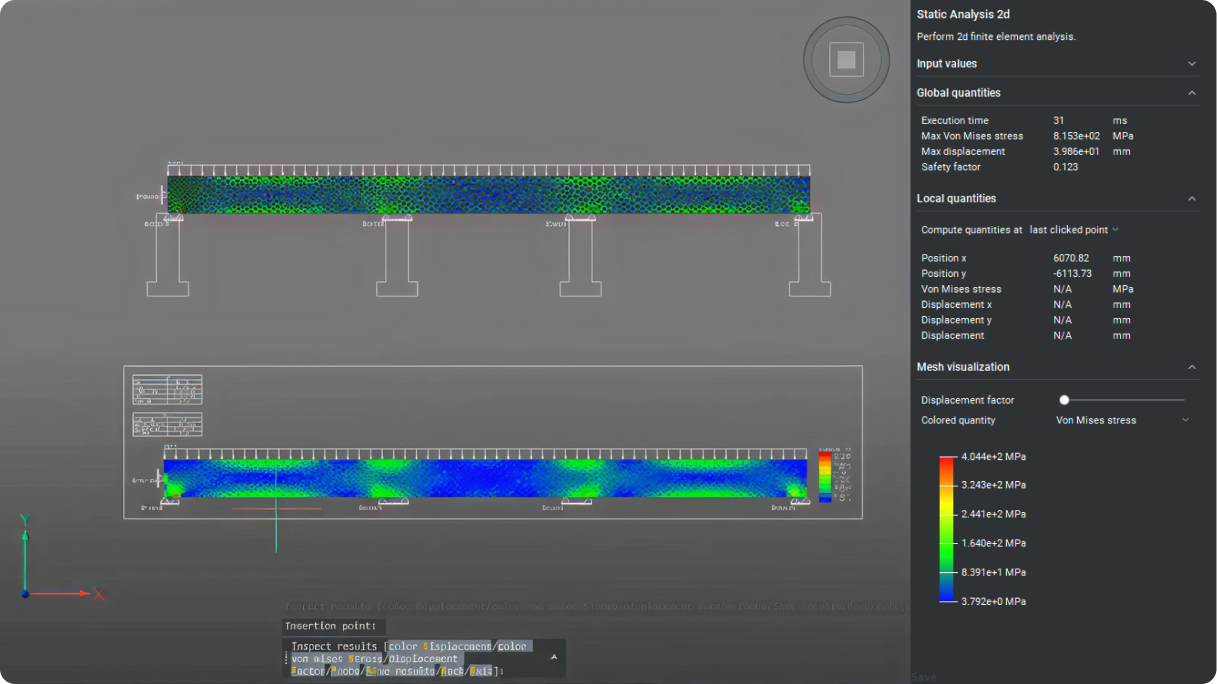

The new 2D Finite Element Analysis tool lets you run basic finite element analysis right inside your drafting environment. Add supports and loads, tweak mesh accuracy, and get instant feedback on von Mises stress and displacement. It's a fast way to catch design flaws early.

Dimensioning and Scaling, Simplified

Precise dimensions are critical, especially for components like valves, where flange mounting and stem fit are non-negotiable.

• Use PDIM (Power Dimensioning) to make quick, reliable edits.

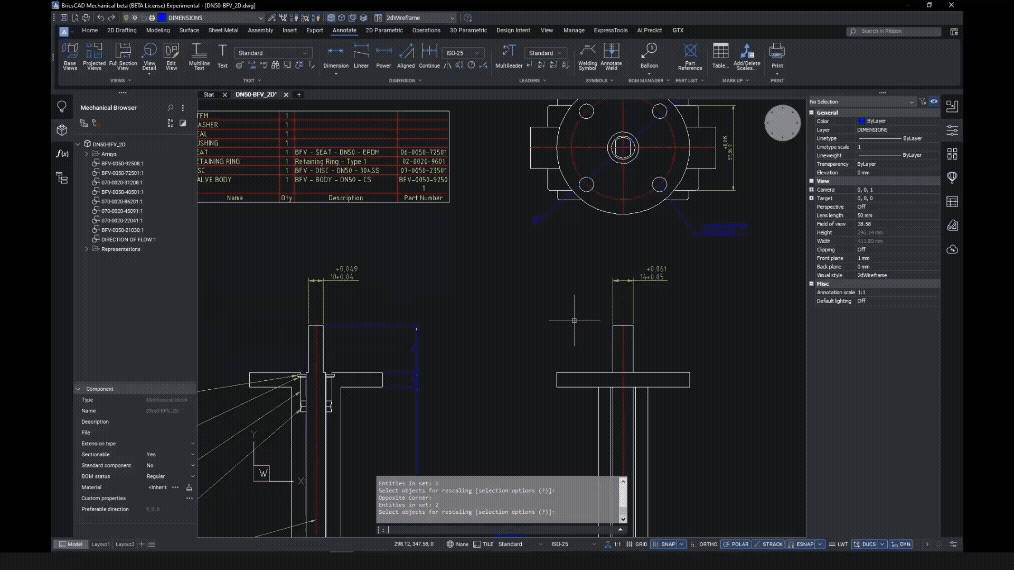

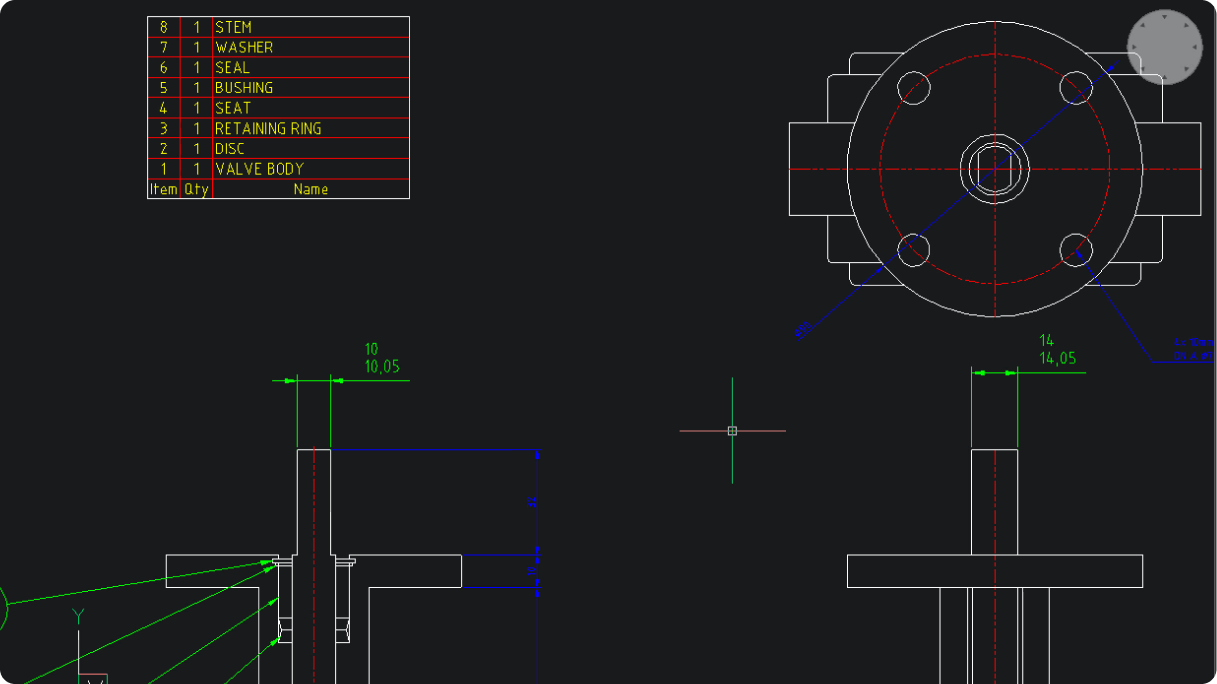

• Rescale geometry interactively with the updated AM Rescale tool.

The result? Accurate drawings that meet spec, with fewer errors down the line.

Surface Details That Matter

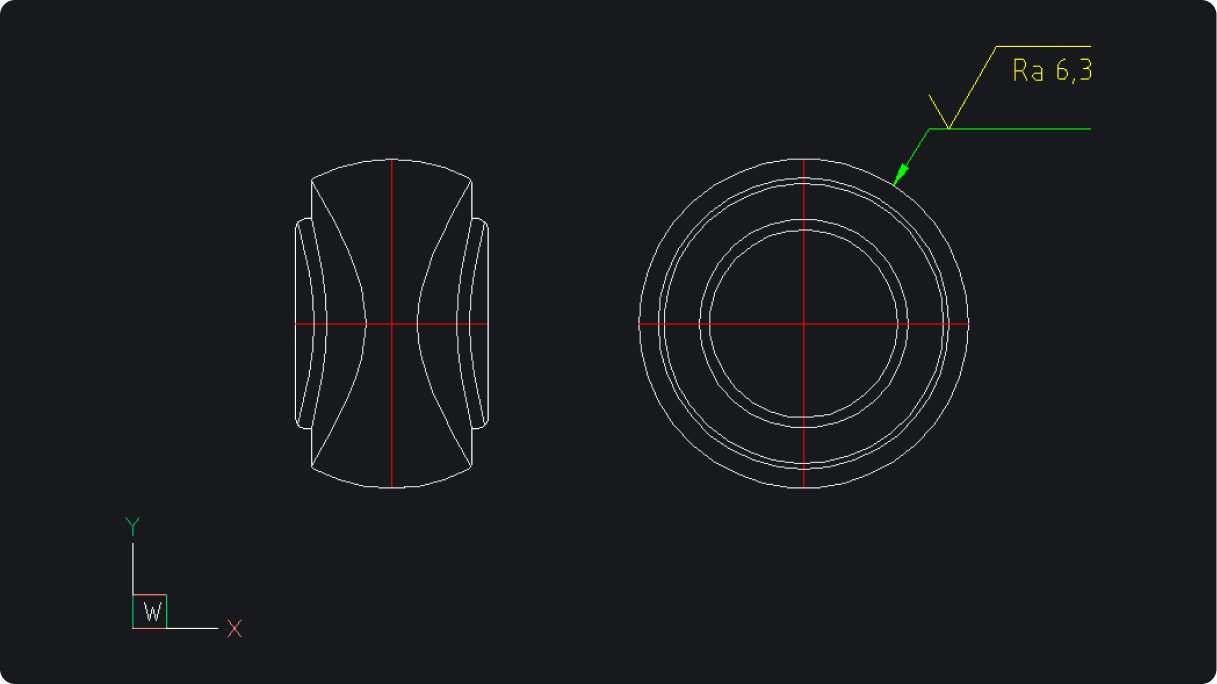

Wear, friction, and material performance all come down to the fine print. The enhanced AM Surface Symbol tool makes it easier to add accurate surface roughness details, so your design can handle real-world wear and tear.

Practical, Familiar, Ready to Go

BricsCAD Mechanical V25.2 is built for manufacturers who need a practical, cost-effective 2D drafting solution that doesn't overcomplicate things. It’s fast to learn, smooth to transition into, and powerful enough to support real production needs, whether you're starting from scratch or building on a legacy.

Work the Way You Already Do—But Better

With BricsCAD Mechanical V25.2, how you work doesn’t have to change. Just how long it takes. From part edits and performance checks to dimensioning and publishing, V25.2 helps you move faster, make fewer errors, and get more out of your existing designs. Download it today and get started.
