In this post, you learn how to place fields in mtext, regular text, and in attributes, as well as how to customize the look of field text.

Fields are a special form of text that update automatically. Fields look like text with a gray background and show values provided by BricsCAD or the operating system, such as the diameter of a circle or the date and time. To show new values, the text can be updated manually or automatically.

For instance, the circle illustrated below at left has its area, center point, and so on described by regular text (white background) and by field text with the gray background. The gray background is only displayed and not plotted, and can be turned off with the FieldDisplay variable.

When the size of the circle is reduced and the field text updated, new values show up for the ones that changed --- the area, circumference, and radius. See figure to the right.

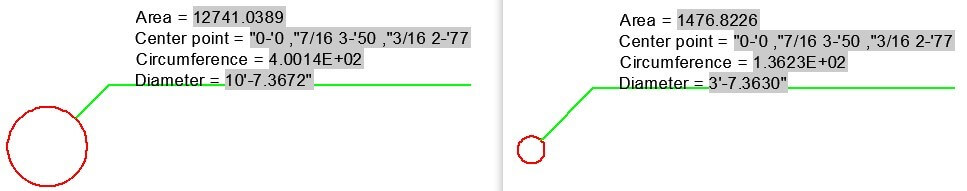

Coding with Field Text - 1-2

Left: Circle with field text in gray, and regular text.
Right: Changed circle with updated field text.



Field --- displays the Field dialog box for constructing field text; also accessed through text commands such as MText and AttDef

UpdateField --- forces an update of field values, should they have changed


DbMod (read-only) --- reports if the drawing has been modified by changes to fields

FieldDisplay --- toggles the gray background to field text

FieldEval --- specifies when fields should be updated; default = 31 (all turned on):

0 Not updated automatically

1 Updated when the drawing is opened

2 Updated when the drawing is saved

4 Updated when the drawing is plotted

8 Updated when the eTransmit command is used

16 Updated when the drawing is regeneration

NOTE The FieldEval variable does not update the Date field; it is updated only by the UpdateField command.

Placing Field Text

Field text is added to drawings through the Field, Text, MText, AttDef, and Table commands, and can be placed in dimensions and leaders (as mtext). Let's take a look at each one.


The Field command places field text in drawings in a manner similar to the Text command, placing single lines of text. It operates identically in Linux, Mac, and Windows. For this tutorial, the drawing's creation date is inserted as a field.

  1. Enter the Field command.

    : field

    Notice that BricsCAD displays the Field dialog box.

    Coding with Field Text - 14-585x489

    Field dialog box

  2. Select a field that you want by selecting a group (such as Date & Time or Document), choosing a field name from the group (like CreateDate or Author) and then applying formatting, if available.For this tutorial, the task is to insert the creation date as a field: CreationDate is in the Date & Time group. Follow these steps:

    1. Under Field Names, open the Date & Time node by clicking the + button.

      Coding with Field Text - 3-2

      Fields available for Date & Time

    2. Notice the fields that are available for specifying dates. Choose CreateDate.

    3. Notice that the empty part of the dialog box suddenly fills up with all kinds of options related to formatting dates and times.

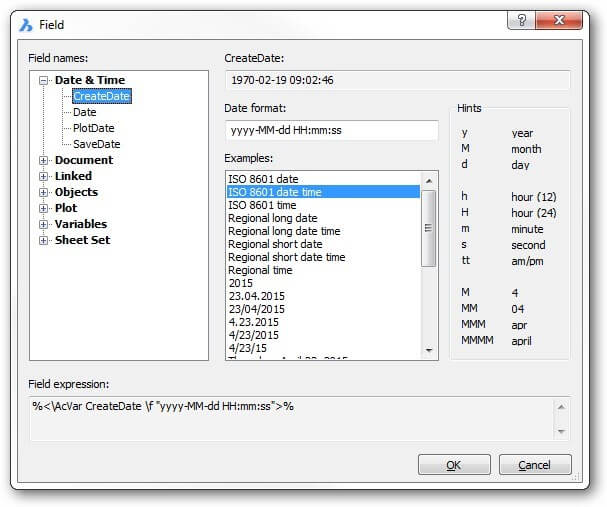

      Coding with Field Text - 4-1

      Formatting options for the CreateDate field

      You can format the date field by selecting a format from the Examples column or else construct your own format. For this tutorial, scroll down and then choose the one that looks like "Thursday, April 23, 2014." (The exact date displayed will differ.)

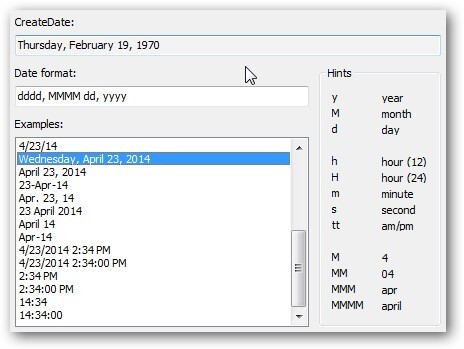

      Coding with Field Text - 5-2

      Selecting a format for the date

      Notice that the Date Format area shows the date's format code: dddd, MMMM dd, yyyy. This is where you can edit the formatting code, something that I describe later.

  3. Click OK. In the command panel, notice that BricsCAD prompts you with a set of Text-like options. (It shows "MTEXT"; it should say "TEXT.")

    MTEXT Current text style: "Standard" Text height: 2.5

  4. Pick a point in the drawing to place the field text:

    Specify start point or [Height/Justify]: (Enter an option, or else pick a point)

    BricsCAD places the field in the drawing with today's date, using the current text style. (The date you see will differ from the one shown below.)

    Coding with Field Text - 6-1

    Date generated by field code

    If, however, the drawing is a new one and has not been saved, then all you'll see are four dashes, like this:

Coding with Field Text - 7-2
Field code that lacks meaning

This is the way that BricsCAD tells you a field lacks a valid value. To give the drawing a creation date, use the __Save__ command.

TIP When a field displays four hash marks, like #### , it means the field value is invalid for some reason.


If you want to embed field text with regular text, then use the MText or AttDef commands; the Text
command and dimensioning commands can't do this. Embedding lets you mix regular text and field text in useful ways, such as the combination of "Date: " with a dynamic date.

Coding with Field Text - 8

Combining text with field code

In this tutorial, you place a field that reports the file name of the drawing.

    1. Start the MText command, and then answer its prompts:

    : mtext
    Multiline Text: First corner for block of text: (Pick a point)
    Select Opposite corner for block of text or [Justification/Rotation angle/text Style/\ **text Height/Direction/Width]: (Pick another point)

    1. Type some text, such as "Drawing Name:".

    2. To insert the field text, press Ctrl+F.
      Alternatively, in the Text Formatting toolbar, click the Field button.
      Or else right-click the Text Formatting toolbar, and then from the shortcut menu select Insert Field.

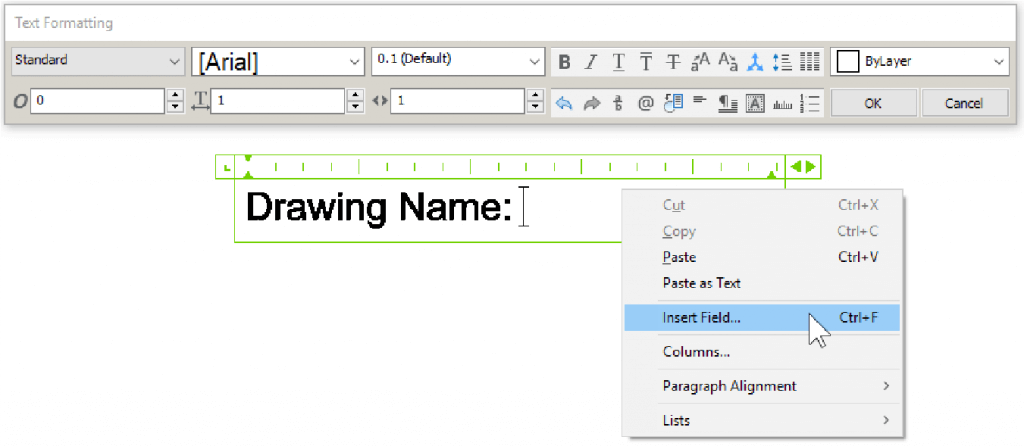

      Coding with Field Text - 9-1024x446

      Accessing fields in the MText command

    3. Notice that the Field dialog box opens. To choose the field for displaying the name of the drawing file, follow these steps:

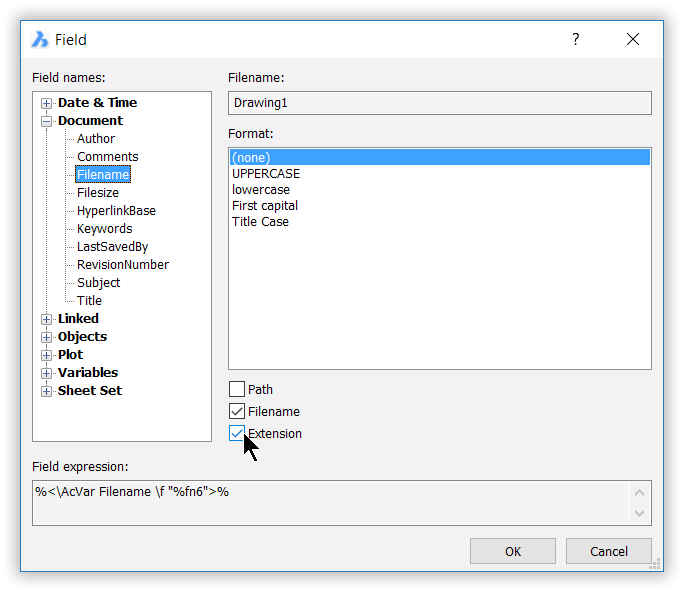

      Coding with Field Text - 10

      Choosing formatting options for the file name

      1. In the Field Names list, open the Document node.

      2. Under Document, choose Filename.

      3. In the Format area, set these options:

        Format (none)
        Path No
        Filename Yes
        File extension Yes

  1. Click OK. Notice that BricsCAD adds the file name field. It may appear as "Drawing1," or whatever the file name of your drawing is. You can tell that it is field text, because of the gray background.

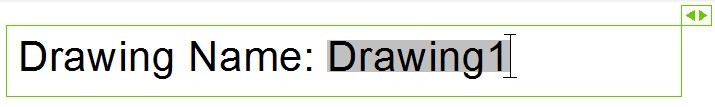

    Coding with Field Text - 11

    Field text with filename

  2. Exit the mtext editor by clicking OK.

  3. To see field text in action, now save the drawing to change its name:

    1. Enter the SaveAs command.

    2. In the Save Drawing As dialog box, enter a file name like "Field text example."

    3. Click Save.
      Notice that the field text changes to reflect the new file name.

      Coding with Field Text - 12

      Field text with filename and exetension


Field text can be made part of an attribute definition. Recall that attributes are used to add custom
data to blocks. As shown by the following tutorial, this is done with the AttDef command, which is
normally used to define attributes.

In this tutorial, you create an attribute that reports the current zoom level of the drawing.

  1. Start the AttDef command. Notice the Attribute Definition dialog box.

  2. In the Attribute section, fill in the attribute text fields --- Tag, Prompt, and Default fiels. YT; you can use the figure below as an example of the text to use:Coding with Field Text - 13

  3. To add a field to the attribute, click the Insert Field button next to the Default field. Notice that BricsCAD displays the usual Field dialog box, as shown below.

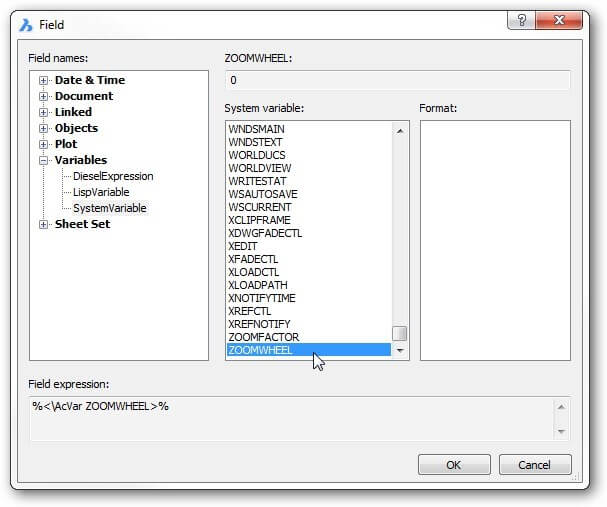

    Coding with Field Text - 14

    Field dialog box

  4. Select a system variable like this:

    1. From the Fields Name list, open the Variables node.

      Coding with Field Text - 15

      Choosing the SystemVariable field name

    2. Select SystemVariable.

    3. Under the list of System Variables, scroll right to the end and then pick ZoomFactor.

    4. It has no format options, so click OK.

  5. Click OK to close the Field dialog box.
    Back in the Attribute Definition dialog box, notice that the field text shows in the Default box with a gray background.

    Coding with Field Text - 16

    Entering field code as an attribute definition

  6. Click OK to close the dialog box. All you see in the drawing is ZOOMVALUE.

    Coding with Field Text - 17

    No field text yet!

    1. Start the Block command.

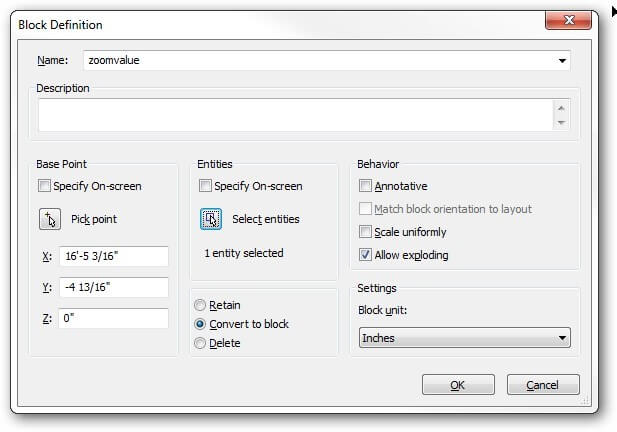

      Coding with Field Text -18

      Placing a block as field text

    2. Enter the following parameters:
      Name zoomvalue
      Base Point Click Pick Point, and then pick the lower right corner to ZOOMVALUE; use the INSertion point entity snap to assist you.

      Coding with Field Text - 19

      Using Insertion entity snap to locate the insertion point of the text

      Entities Click Select Entities and then choose the text
      Convert to Block Yes

      To see the field text, you need to turn the attribute into a block and then insert the block. Follow these steps:

TIP Users should not be allowed to modify fields, so turn on the Constant setting found in the Mode section in the AttDef dialog box.

  1. Click OK.
  2. When the Edit Attributes dialog box appears, click Cancel; you don't need its services.
  3. Zoom in and out. The zoom factor value does not change. To update the field takes two steps this time.
    1. First, change the value of the zoom factor using the related varaiable:
      : zoomfactor
      New current value for ZOOMFACTOR (3 to 100) <60>: 5

    2. The field text still does not change (I'll explain later why this is), so enter the Regen command to see the value of the field updated.
      : regen

      Coding with Field Text - 20

      Field text visible after Regen command

Changing Field Text

To change field text, simply double-click it; BricsCAD displays the Field dialog box. Use it to make
changes. Alternatively, you can change field values by using the Properties palette. Here, we look
at both approaches.


To edit fields placed by the MText command, you use this procedure.

  1. Double-click the field text. Notice that BricsCAD displays the mtext editor.

  2. Click the field text. Notice that its background color changes to blue.

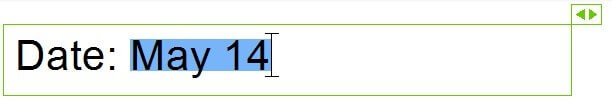

    Coding with Field Text - 21

    Field text in mtext

  3. Now double-click the blue and notice that the Field dialog box appears. (Alternatively, you can right-click field text to access the following shortcut menu.)

    Coding with Field Text - 22

    Accessing field text editor

    Here's what the three field-related options mean on the shortcut menu:
    Edit Field --- displays the Field dialog box.
    Update Field --- forces an update the field's value.
    Convert Field to Text --- turns the field into normal text, freezing the value of the field.

  4. Select a different field type, or change the field formatting.

  5. Click OK to close the dialog box, and then click OK to exit the mtext editor.

So the background to field text changes color, depending on its editing state:

Coding with Field Text - 23Gray = field text in unedited state

Coding with Field Text - 24Blue = field text ready for editing


When field text is in an attribute definition, you can edit it, as follows:

  1. Double-click the attribute text. BricsCAD displays the Attribute Editor dialog box. (The EAttEdit command was executed.)

    Coding with Field Text - 25

    Field text in attribute editor

  2. In the dialog box's Default field, double-click the gray field text. Alternatively, you can right-click the field text itself to access this shortcut menu:

    Coding with Field Text - 26

    Accessing field text editor

  3. Notice the Field dialog box. Make your changes and then click OK to exit the dialog boxes.

Controlling the Way Fields Update

The point to using field text is that it can update values --- manually or automatically. You force an update with the UpdateField command or else specify when automatic updates take place with the FieldEval system variable.


To update selected fields manually, use the UpdateField command. It asks you to select one or more fields and then update their values.

: updatefield
Select field(s) to update: (Press Ctrl+A,or select individual fields)
Select field(s) to update: (Press Enter to end object selection)
*<n* field(s) found, *n* field(s) updated>

To update all fields in the drawing, press Ctrl+A at the 'Select fields' prompt.


Earlier, you used the Regen command to force the value of a field to update. This was an application of an automatic update that was dictated by the FieldEval sysvar. It wasn't the Regen command itself that did the updating; rather the command triggered BricsCAD to also update all fields in the drawing.

Fields are updated by BricsCAD when any of the following trigger events occur:

Open --- when the drawing file is opened
Save --- after the drawing file is saved, as you saw above with the CreateDate field
Plot --- before the drawing is plotted
eTransmit --- as the drawing is being prepared for packaging with the eTransmit command
Regen --- when the drawing is regenerated (reloaded from the .dwg file)

Note that the settings in FieldEval variable do not update Date fields; dates can be updated only
with the UpdateField command.

These events are controlled with the FieldEval system variable, which is best accessed through
the Settings dialog box:

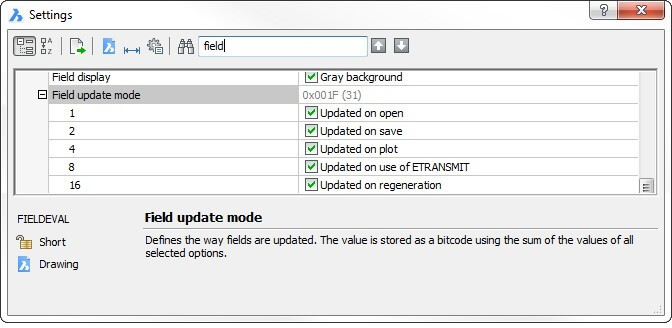

Coding with Field Text - 27 (1)

Settings for field text

If you choose the access the system variable at the command line, it looks like this:

: fieldeval
New current value for FIELDEVAL (0 to 31) <31>: (Enter a number)

The value takes one or more of these values:

0 Fields are not updated automatically; use the UpdateField command
1 Open command
2 Save command
4 Plot command
8 eTransmit command
16 Regen command

The default is 31, the sum of 1+2+4+8+16 --- all options are turned on, except for 0.


The FieldDisplay system variable determines whether field text displays that gray rectangular background or not:

: fielddisplay
New current value for FIELDDISPLAY [1 for on (ON)/0 for off (OF): (Enter OFf or On)

I say, leave it on all the time, because (a) its purpose is to lets you distinguish between field and regular text, and (b) the gray background is never plotted anyhow.

0 Fields don't display the gray rectangular background
1 They do

Another Field Text Example

In the following tutorial, you get field text to report the area of a rectangle.

  1. Start BricsCAD and then use the Rectang command to draw a rectangle of any size.

  2. Use the Field command to create the field code for the area of the rectangle. Select the following options:
    Field Category Objects
    Field Names Object
    Object Type (Click Select Object button, and then select the rectangle.) Polyline
    Property Area
    Format Architectural
    Precision 0.00

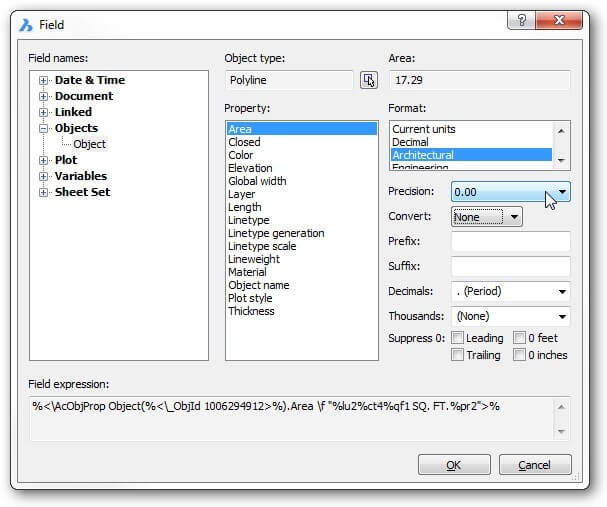

    Coding with Field Text - 29

    Field dialog box

    TIP The field text is linked automatically to the rectangle through the Select Object button

  3. Click OK to exit the dialog box.

  4. BricsCAD switches to mtext-like prompts:

    MTEXT Current style: "Standard" Text height: 2.5
    Specify start point or [Height/Justify]: (Pick a point inside the rectangle)

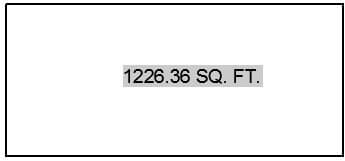

    Coding with Field Text - 30

    Field text inside rectangle

    The field text is placed in the drawing. Notice that the units are shown as "SQ. FT." --- square feet.

Updating the Field Text

With the field text reporting the area of the rectangle, you can go ahead and change the size of the
rectangle to see how the field updates.

  1. Select the rectangle and then use the grips to change the size of the rectangle.

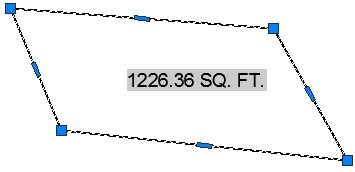

    Coding with Field Text - 31

    Changing the rectangle...

  2. Enter the Regen command to update the field text.

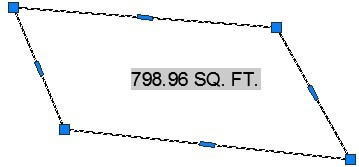

    Coding with Field Text - 32

    ... changes the field text

    Notice that the field text changes to reflect the new area.

TIP It is important to remember that field text is tied to specific objects. If you erase the rectangle and then use the UpdateField command, the field text will read ######## because it no longer has a valid meaning, because its related object is gone.


In general, field codes generated by BricsCAD are compatible with those from AutoCAD®. The primary difference is that BricsCAD tends to have fewer entities and fewer codes for some entities. In addition, when you paste literal field codes into a drawing, BricsCAD interprets them as a script; in AutoCAD®, they are pasted as field text.When you open a drawing from AutoCAD® in BricsCAD containing unsupported field codes (such as for mlines), BricsCAD displays them correctly as field text, but cannot edit them.

Understanding Field Codes

Field text uses a coding system that is not documented by neither Autodesk® nor Bricsys. A typical field code looks like this:

**%<** AcVar Filename \f "%tc4%fn7">%

(Parts of the code that never change are shown in purple.) Generally, there are two pairs in a code,
one set before the \f, and another after:

  • Before the \f is the type of field
  • After the \f is the format of the field

I figure that \f is short for "format." In the drawing, the code listed above gives the file name in a field, like Drawing1.dwg.

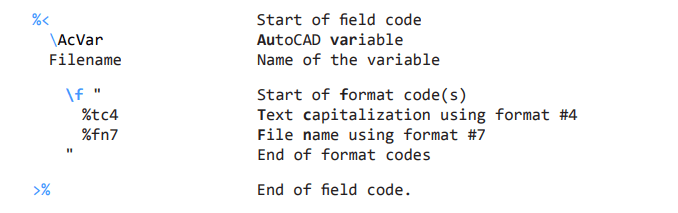

Let's parse the field code to see what it means:

Coding with Field Text - code 2

%< Signals the start of a field code, just as’ ‘(’ tells BricsCAD that LISP code is starting, and ‘$(’ indicates the start of Diesel code.
\ Backslash Indicates that a metaword follows. In this case, \AcVar refers to the “AutoCAD® variable,” and that the following word will be the name of a variable — Filename, in this case.
\f Specifies that one or more format codes are to follow.
” “ Quotation marks delimit format codes; format codes are always held within the quotation marks.
% Percent Indicates the start of a format code. The first code, %tc, specifies the text capitalization. The value of 4 means that the text of the file name is shown in title case, meaning the first letter of each word is capitalized. The second format code, %fn7, specifies how much of the file name is displayed; a value of 7 means that the path, file name, and file extension are all displayed.
>% Signals the end of the field code

Here is another example of a field code. This one shows the properties of an object, a circle:

%<\AcObjProp Object(%<\_ObjId 2126544536>%).Center \f "%lu2%pt3">%

let's pick it apart

Coding with Field Text - code 3

Complete Field Code Reference


Fields belong to groups. All of them are found in one of the following group names:

Field Group Group Name
Objects and named objects AcObjProp objectId
System variables AcVar varName
Diesel code AcDiesel code


Fields use meta-words to allow additional information, such as a hyperlink or units. Meta-words are identified by the backslash ( \ ) prefix. The backslash is followed by text that is surrounded by quotation marks ( " ). Here are a few examples:

Meta-word Meaning MetaWord
Hyperlink address follows \ \href “hyperlinkReference“
Formatting codes follow \ \f “formatCodes“
Inches units follows \ \”


The text displayed by fields is formatted using the following format codes:

Formatting Format Code
Decimal ( .) places %.
Angular Units %au
Bytes (filesize) %by
Convert %ct
Decimal Separator %ds
File Name, path, and extension %fn
Linear Units %lu
Line Weight units %lw
Precision %pr
Points (x,y,z) %pt
Scale Factor %qf
Text Case %tc
Hexadecimal conversion %X

Some notes on format codes:

%X forces numbers to be displayed in hexadecimal notation (base 16)
%ld is a code used by file sizes; I haven't figured out, but it seems to have no effect
%qf is used by scale factors, but employs values I haven't figured out yet

Some codes use the same naming system as related variables. For example, %lu (linear units) uses the same values as the LUnits system variable, such as 1 = scientific units and 2 = decimal units.


Here is a summary of all of the format codes employed by fields.

%tcn --- Text Case

Specifies how to display the case of text.

Meaning Code
No formatting blank
lowercase %tc2
First capital %tc3
Title Case %tc4

%lu*n ---Linear Units

Specifies how to display linear units. Values match those of the LUnits system variable. Decimal units can use decimal separators; see %ds below.

Meaning Code
No formatting blank
Scientific %lu1
Decimal * %lu2
Engineering units %lu3
Architectural units %lu4
Fractional units %lu5
Current Units %lu6

%dsn --- Decimal Separator

Decimal separators specify the character that separates thousands in decimal units (%lu2). BricsCAD uses standard ASCII codes between 31 and 127 for specifying decimal separators. For the meaning of ASCII codes, consult an ASCII table. These are just a few examples.

Meaning Code Notes
Space separator %ds32
Comma ( , ) separator %ds44 Used in North America
Decimal ( . ) separator %ds46 Used in European countries
Angle ( < ) separator %ds60
Letter A separator %ds65

%aun --- Angular Units

Specifies how angular units are displayed and matches the values used by the AUnits variable.

Meaning Code
No formatting blank
Decimal degrees %au0
Deg/min/sec %au1
Grads %au2
Radians %au3
Surveyor’s Units %au4
Current units %au5

%lwn --- Line Weight units

Specifies the units by which to display lineweights; similar to LwUnits system variable.

Meaning Code
Millimeters %lw1
Inches %lw2

%qfn --- scale Factor

Specifies scale factor for plot and viewport scales.

Meaning Code
Viewport custom scale %qf1
Plot scale %qf2816

%ctn --- ConverT

Specifies how plot scales and areas are displayed:

Meaning Code Notes
No scale blank
#:1 %ct0 #
1:# %ct1 1/#
#”=1’0″ %ct2 12*#
Area Scales Code Notes
Square feet %ct3 #
Square inches %ct4 12*#

%ptn --- PointTs (xyz coordinates)

Specifies which coordinates to display; default displays all three (x, y, and z).

Meaning Code
X, Y and Z none
X only %pt1
Y only %pt2
Z only %pt3
X and Y %pt4
X and Z %pt5
Y and Z %pt6

%.n --- decimal places

Specifies number of decimal places displayed by real numbers:

Meaning Code
8 %.8
7 %.7
6 %.6
5 %.5
4 %.4
3 %.3
2 %.2
1 %.1
0 %.0

%prn --- display PRecision

Specifies fractional precision or number of decimal places displayed, in a manner similar to the LuPrec system variable. Note that under some conditions, %pr7 and %pr8 display at most 1/64 precision.

Fractions Decimal Places Code
1/256 8 %pr8
1/128 7 %pr7
1/64 6 %pr6
1/32 5 %pr5
1/16 4 %pr4
1/8 3 %pr3
1/4 2 %pr2
1/2 1 %pr1
1 0 %pr0


Specifies how much of the file name to display.

Meaning Code
No file name, path only %fn1
File name only, without extension %fn2
File name and path, without extension %fn3
File name with extension %fn6
File name with extension and path %fn7


Specifies the format in which to display file sizes.

Meaning Code
Bytes %by1
Kilobytes %by2
Megabytes %by3


Specifies the format of hyperlinks.

Meaning Code
\href Indicates that a hyperlink address follows
#, (Optional) Target
# (Optional) Text to display
#0 Indicates end of hyperlink address


The date and time are formatted by the codes listed below.

Letters not used for codes are treated literally, such as c and Q. You can use characters as separators, such as / -- and ,. The number of characters sometimes affects the date and time displayed: one or two "d"s display the date of the month, while three or four display the day of the week. Some codes are case-sensitive: uppercase M means month, while lowercase m means minute. "System Time" means the date and time as formatted specified by Windows.

Format Comment Example
Months (must use uppercase M)
M Number of month. 3 (March)
MM Number with zero prefix. 03
MMM Three-letter abbreviation Mar
MMMM Full month name. March
d Date of the month. 6
dd Date, with zero prefix. 06
ddd Abbreviated day of the week. Fri
dddd Full day name. Frriday
Years (must use lowercase y)
y Single digit year. 6 (2006)
yy Two-digit year. 06
yyy or yyyy Four-digit year. 2006
h 12-hour clock. 5
hh Hour with zero prefix. 05
t Single-character AM or PM. A
tt Placeholder for AM or PM. AM
H 24-hour clock. 17
HH 24-hour with zero prefix. 07
Minutes (must be lowercase m)
m Minutes. 9
mm Minutes with zero prefix. 09
s Seconds. 8
ss Seconds with zero prefix. 08
Examples of System Time (case sensitive)
%c Date and time in short format. 6/21/05 4:18:06 PM
%#c Date and time. Friday, June 21, 2005 4:18:06 PM
%X Time. 4:18:06 PM
%x Date in short format. 6/21/05
%#x Date in long format. Friday, June 21, 2005


Format Field Codes Examples
Year, Month, Day, Hour, Minute Seconds, and AM/PM
Month M 8 (also 10, 11, 12)
MM 08
MMMM August
Day d 3 (also 31)
dd 03 (also 31)
ddd Sunday
Year yy 04
yyyy 2004
Hour h 4 (also 12)
hh 04 (also 12)
Minute m 5 (also 59)
mm 05 (also 59)
Second s 2 (also 59)
ss 02 (also 59)
am or pm tt AM, PM (leave out for 24-hour clock)
Regional long date %#x Saturday, July 31, 2004
Regional long date and time %#c Saturday, July 31, 2004 7:45:19 PM
Regional short date %x 7/31/2004
Regional date and time %c 7/31/2004 7:45:19 PM
Regional time %XX 7:45:19 PM
Format Field Codes Examples
Alternative Day, Date, Month, Year, time, and AM/PM
Date D 1
Date with zero prefix DD 01
Abbreviated day name DDD Sat
Full day name DDDD Saturday
Month M 3
Month with zero prefix MO 03
Abbreviated month name MON Mar.
Full month name MONTH March
Abbreviated year YY 04
Full year YYYY 2004
Hour H 9
Hour with zero prefix HH 09
Minutes with zero prefix MM 03
Seconds with zero prefix SS 08
Millisecond (1/1000 of a sec) MSEC 08
Displays AM or PM AM/PM AM
Displays am or pm am/pm am
Displays A or P A/P A
Displays a or p a/p a

Objects and Property Names

In general, objects employ the following field text coding:

%<\AcObjProp Object(%<_ObjId idNumber>%).property [\f "format"]>%

idNumber identifies the object

property describes the object's property; named objects are similar, but are restricted to the .property property

format is optional, and formats the property

Here is an example with formatting:

%<\AcObjProp Object(%<_ObjId 2130015880>%).LinetypeScale \f "%tc1">%=

And without formatting:

%<\AcObjProp Object(%<_ObjId 2130015880>%).LinetypeScale>%

(Thanks to www.cadforum.cz for identifying that %X is the code for hex format.)


Here are the properties common to all entities:

Property Name Field Code Formatting
Color TrueColor Text
Layer Layer Text
Linetype Linetype Text
Linetype Scale LinetypeScale Linear units
Lineweight Lineweight Measurement
Material Material Text
Object Name ObjectName Text
Plot Style PlotStyleName Text
Position Coordinates Linear units
Slope Slope Angular units
Thickness Thickness Linear units
Transparency EntityTransparency Text
UCS Elevation UCSElevation Text
  1. Introduction
  2. 55 Tips for BricsCAD Users
  3. Settings
  4. Changing the Environment
  5. Custom User Interface
  6. Introduction to the Customize Dialog Box
  7. Customize the Menu Bar & Context Menus
  8. Toolbars and Button Icons
  9. Writing Macros and Diesel Code
  10. Ribbon Tabs and Panels
  11. Keystroke Shortcuts, Aliases & Shell Commands
  12. Mouse, Double-click & Tablet Buttons
  13. Absolutely Everything You Need to Know About The Quad
  14. Rollover Properties
  15. Workspaces and the User Interface
  16. Designing Tool & Structure Panels
  17. Creating Simple & Complex Linetypes
  18. Patterning Hatches
  19. Decoding Shapes & Fonts
  20. Coding with Field Text
  21. Writing Scripts
  22. Programming with LISP (Introduction)
  23. LISP Functions

Explore BricsCAD

Download BricsCAD Free Trial | Sign Up For News & Updates | Shop Online For BricsCAD Desktop Software

March 19, 2024 8 min

What's New in BricsCAD® V24.2

BricsCAD® V24.2 is chock full of new and enhanced features for 2D drafting, 3D modeling, civil, survey, BIM, and mechanical workflows. With this release, the Bricsys team included several new features and improvements to help you accelerate your time to deliverable and provide you with a familiar CAD experience. So, let's dive in and explore what's new in BricsCAD V24.2!

March 10, 2024 6 min

The path to Scan to BIM automation with BricsCAD® BIM V24

The new automation tools included in BricsCAD® BIM V24 make the Scan-to-BIM process easier and more efficient! If you want fast and accurate reality capture of existing objects, these tools will be a great addition to your arsenal. We've added tools like the Point Cloud Classifier, Point Cloud Detect Rooms, Point Cloud Fit Rooms, and Normal Calculation for structured point clouds to help you create digital twins for quantity takeoff, create accurate building plans, and with facility management.

Follow us on social media
