BricsCAD^® V26

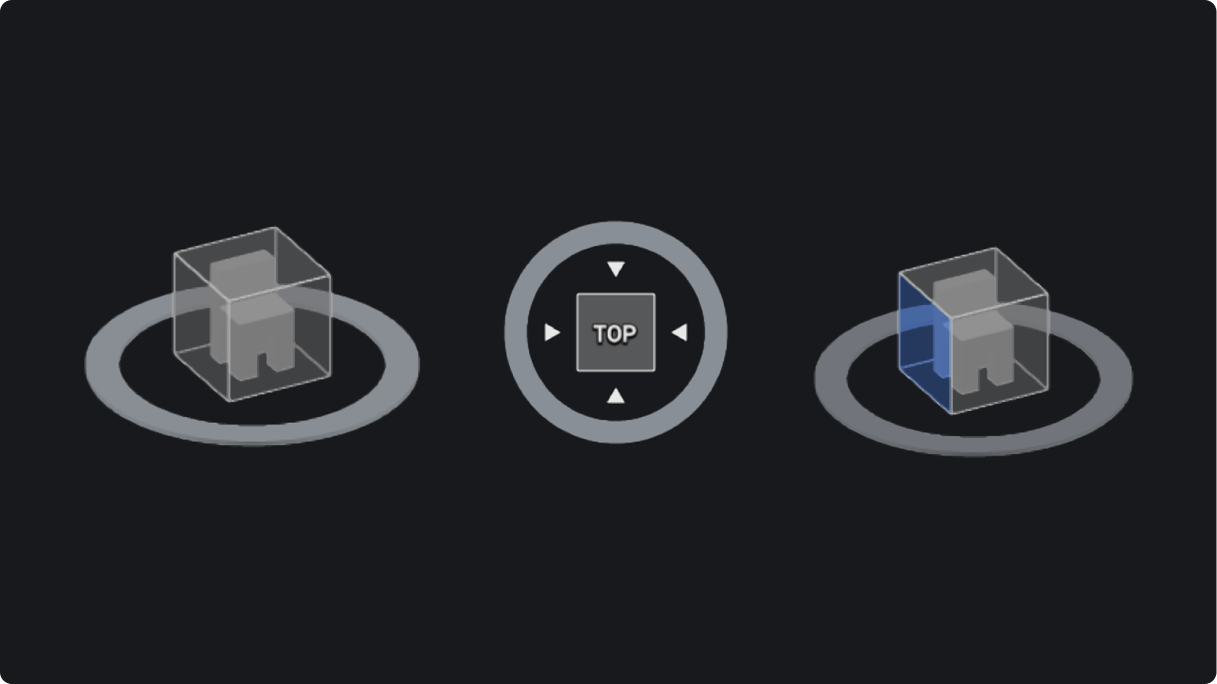

Navigation tool to easily select the desired position on the cube and dynamically reposition a preset view.

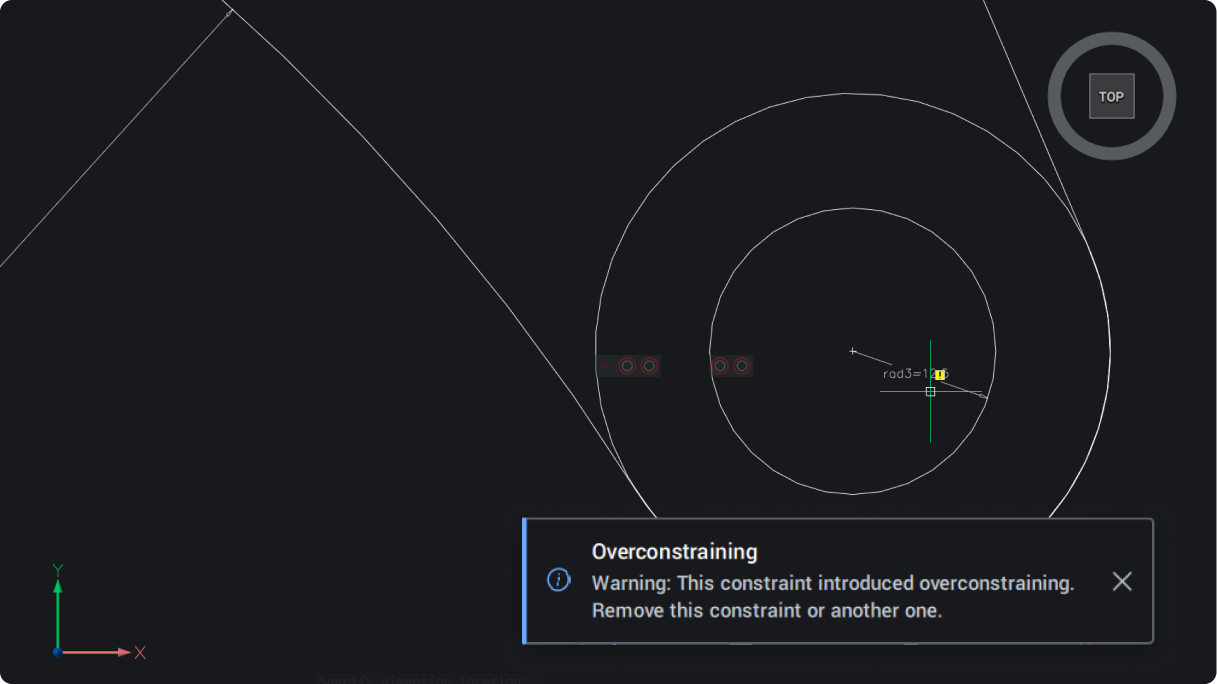

Consistent notifications, offering a simple, clear pop-up for in-product warnings and updates.

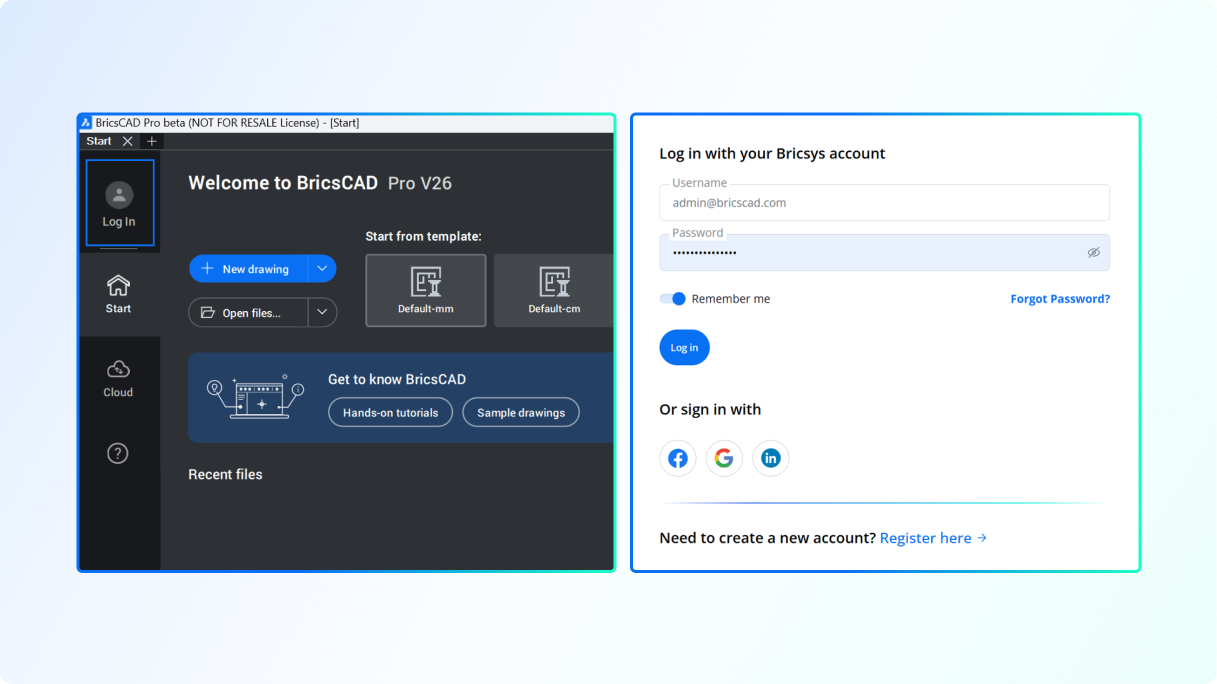

Uniformed log in for simplified browser authentication and consistency across tools.

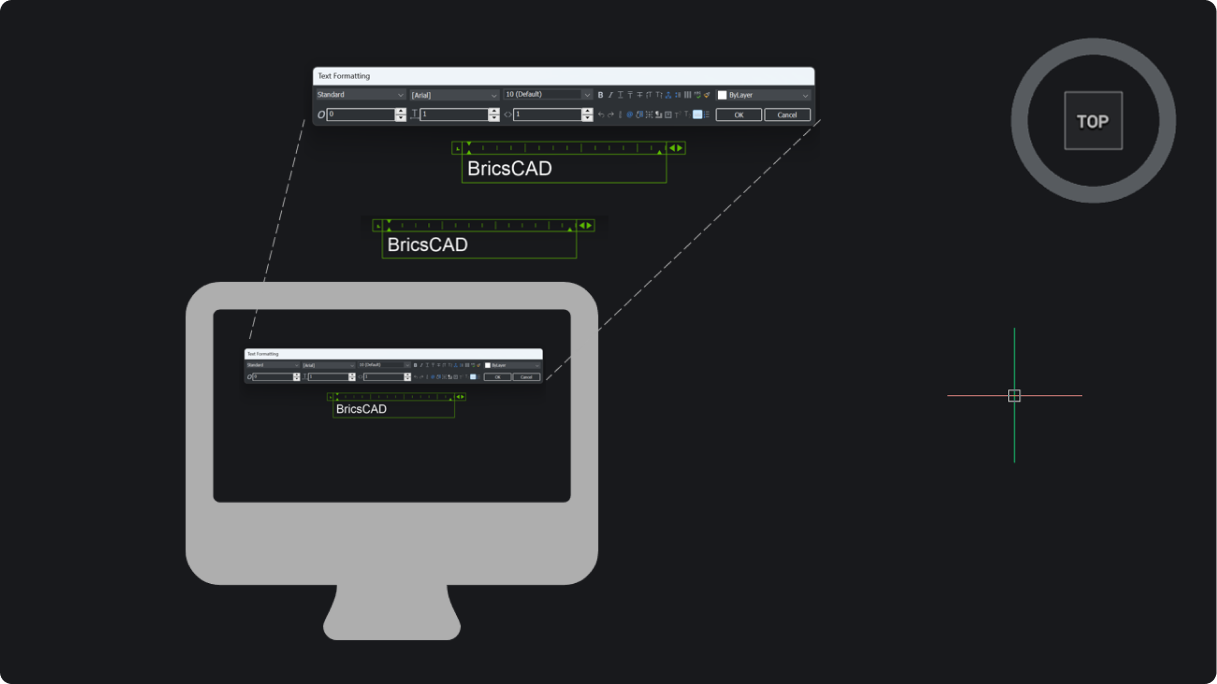

Text, panels, and dialogs now scale more accurately, with increased support for fractional scaling and diverse monitor setups.

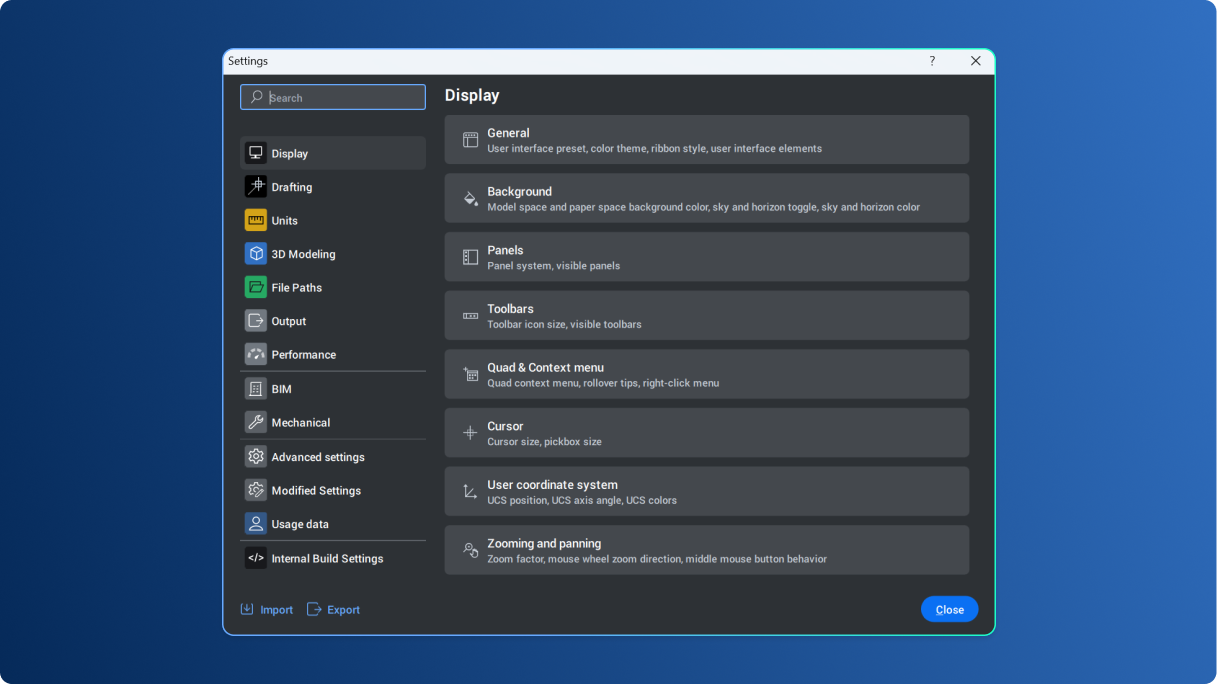

Intuitive, easy process to configure and personalize BricsCAD through the Settings dialog box.

Interface text and graphics in BricsCAD now offer better visibility.

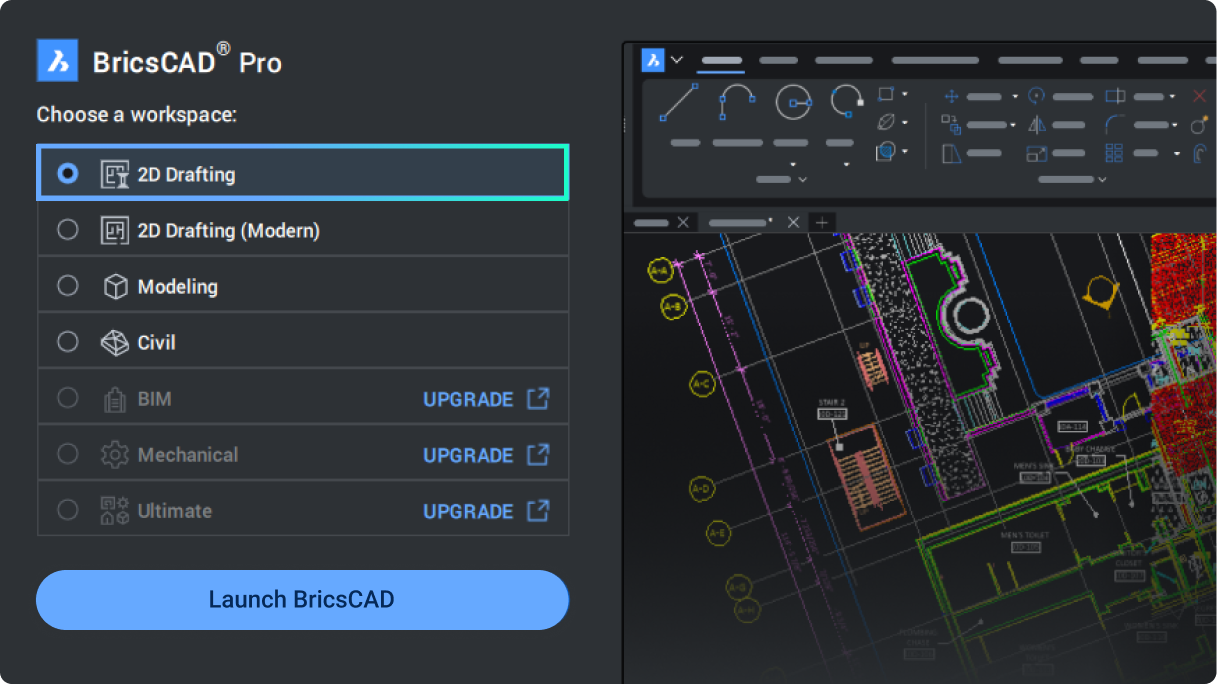

A new launcher to easily find the workspace you need and get started quickly.

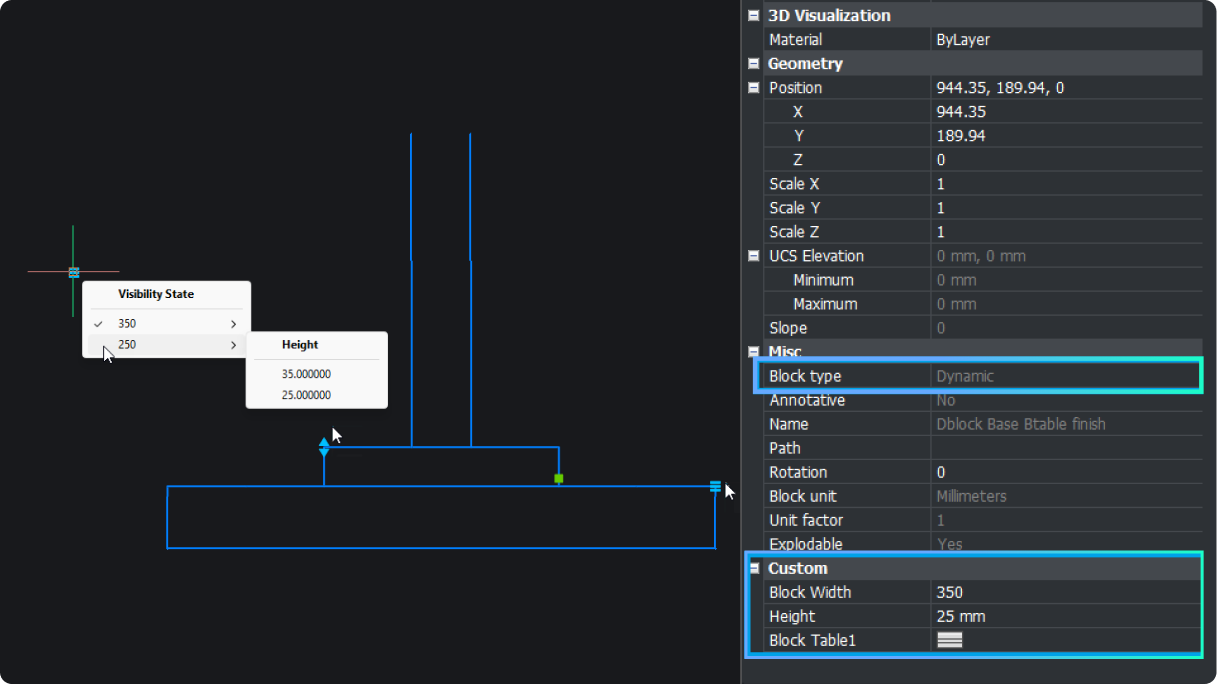

Create Dynamic Blocks within BricsCAD (available only for users outside the United States).

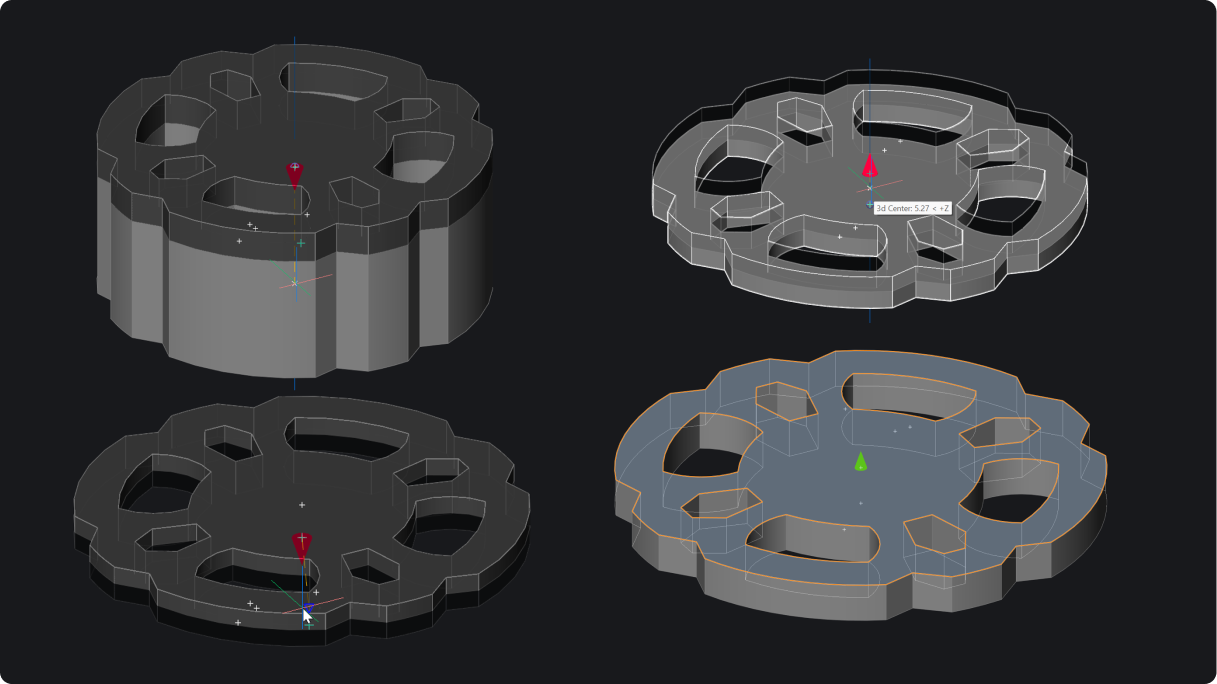

Adjust the size and form of primitive solids and polysolids with 3D manipulation grips for fast freeform editing.

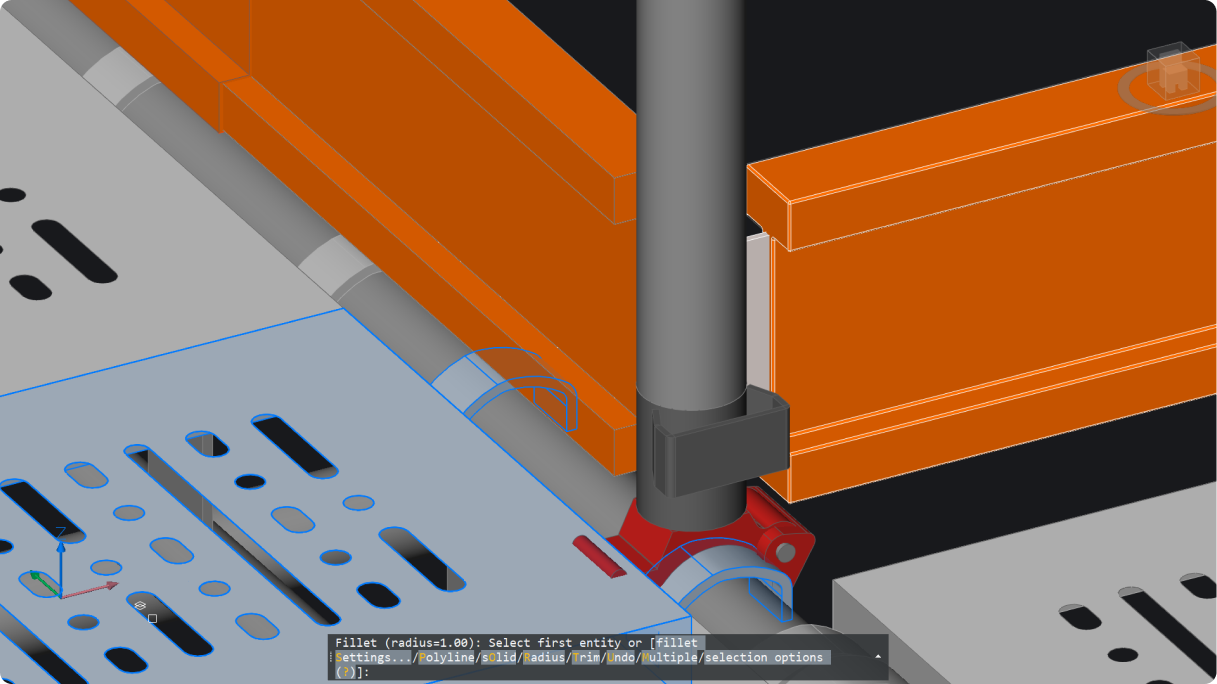

Fillet or chamfer can be applied to all edges of a selected 3D solid in single click when solid option is selected.

Unique to BricsCAD

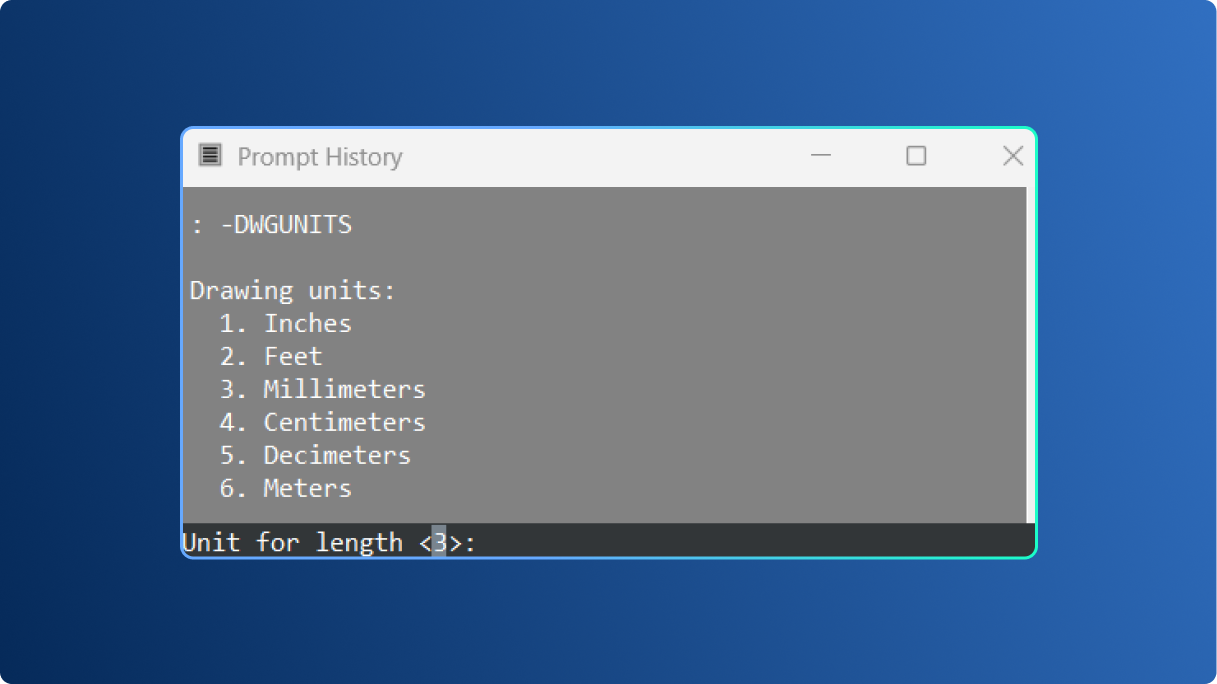

Change the drawing units and related settings, like insertion scale and precision, through the command line (-DWGUNITS).

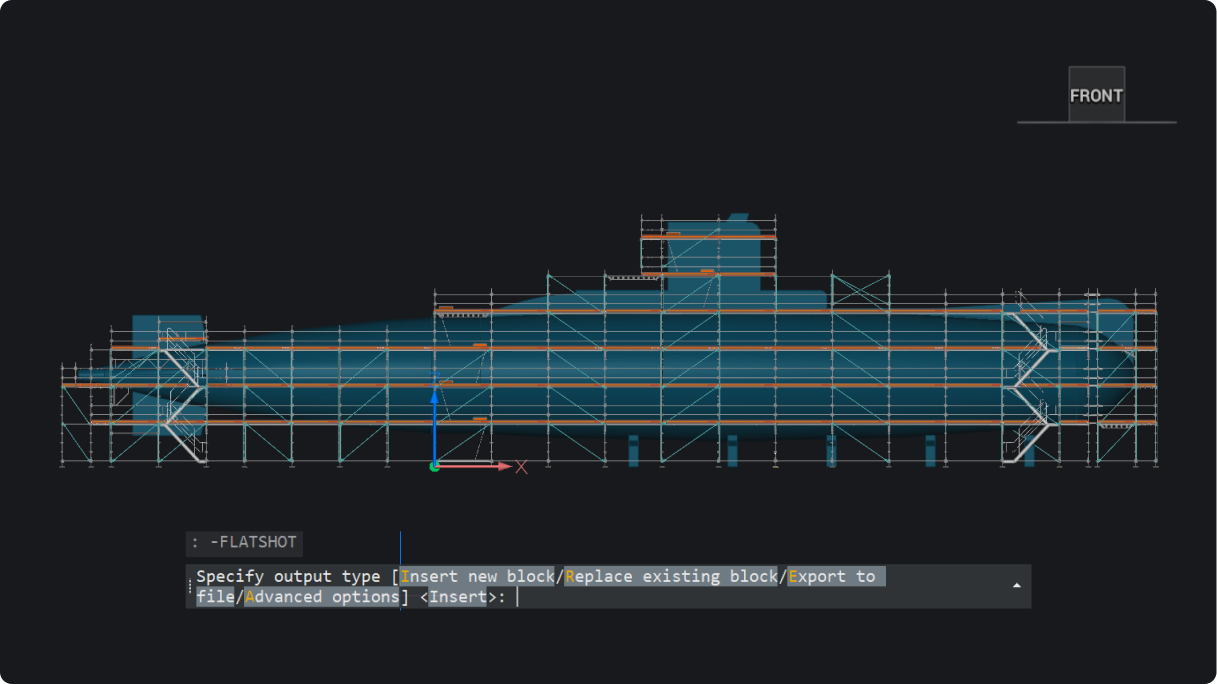

Create 2D block representation of 3D solid geometry based on current view, through the command line or in unattended script (-FLATSHOT).

Unique to BricsCAD

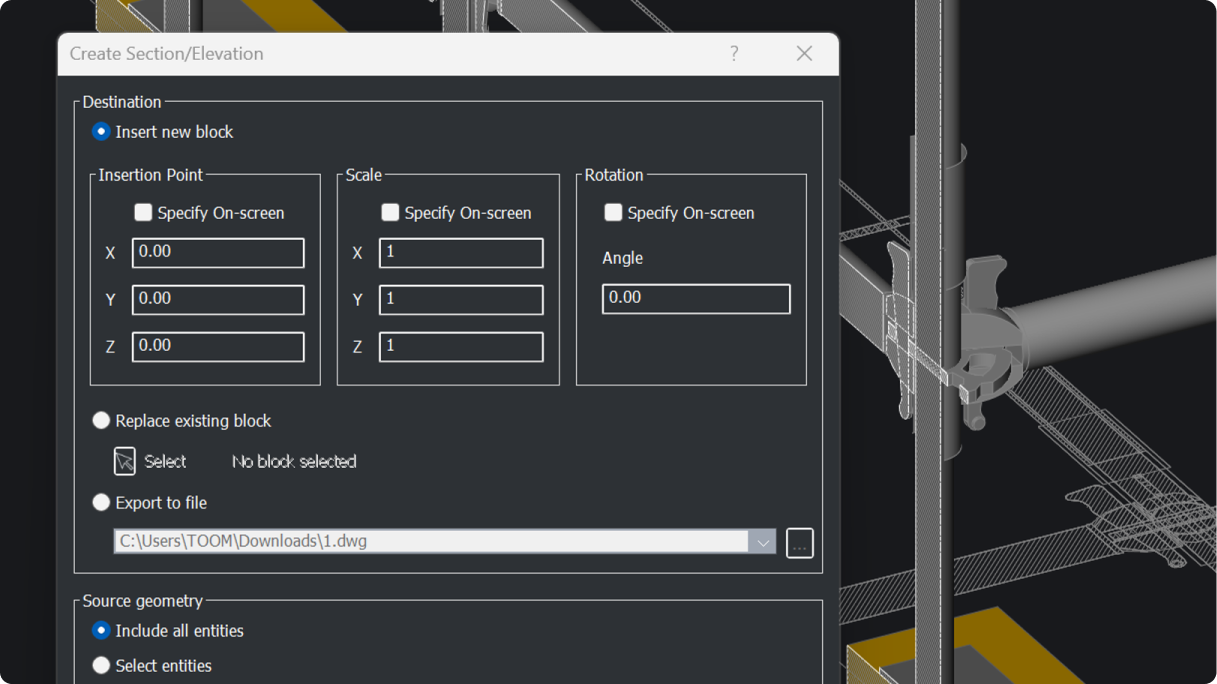

Generate a 2D section block from a section plane of a 3D model, either through the command line or in unattended script (-SECTIONPLANETOBLOCK).

Unique to BricsCAD

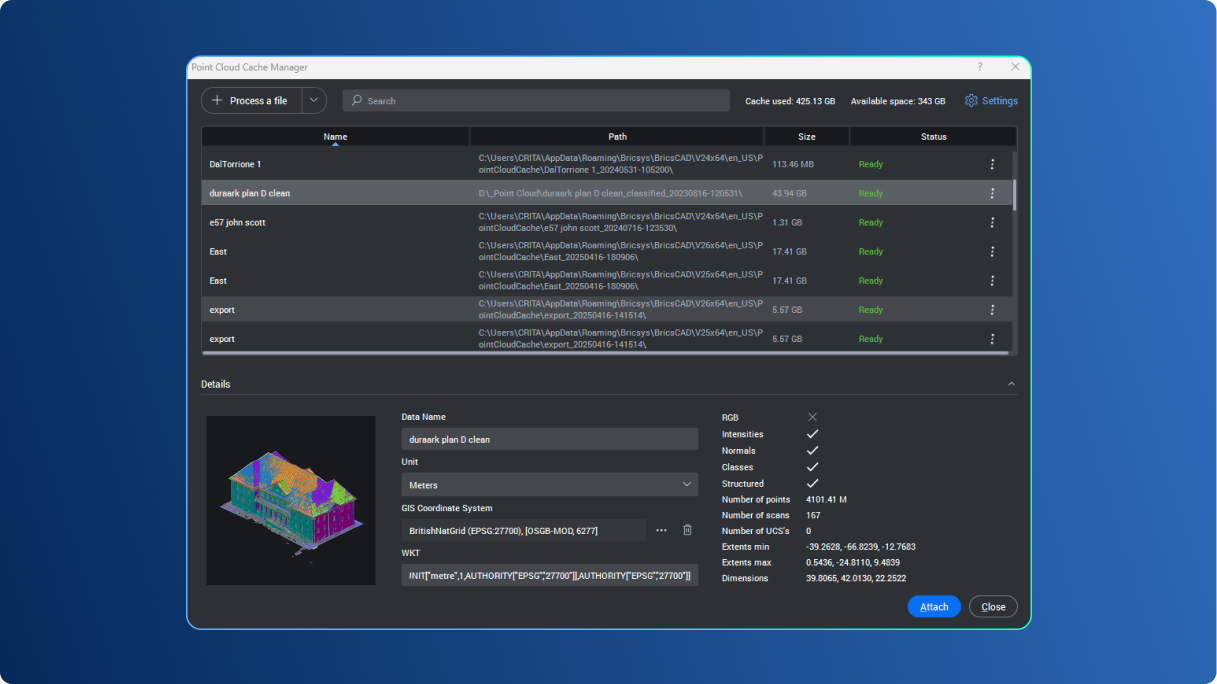

Import, edit, and manage point clouds with thumbnails and search for quick dataset access.

Unique to BricsCAD

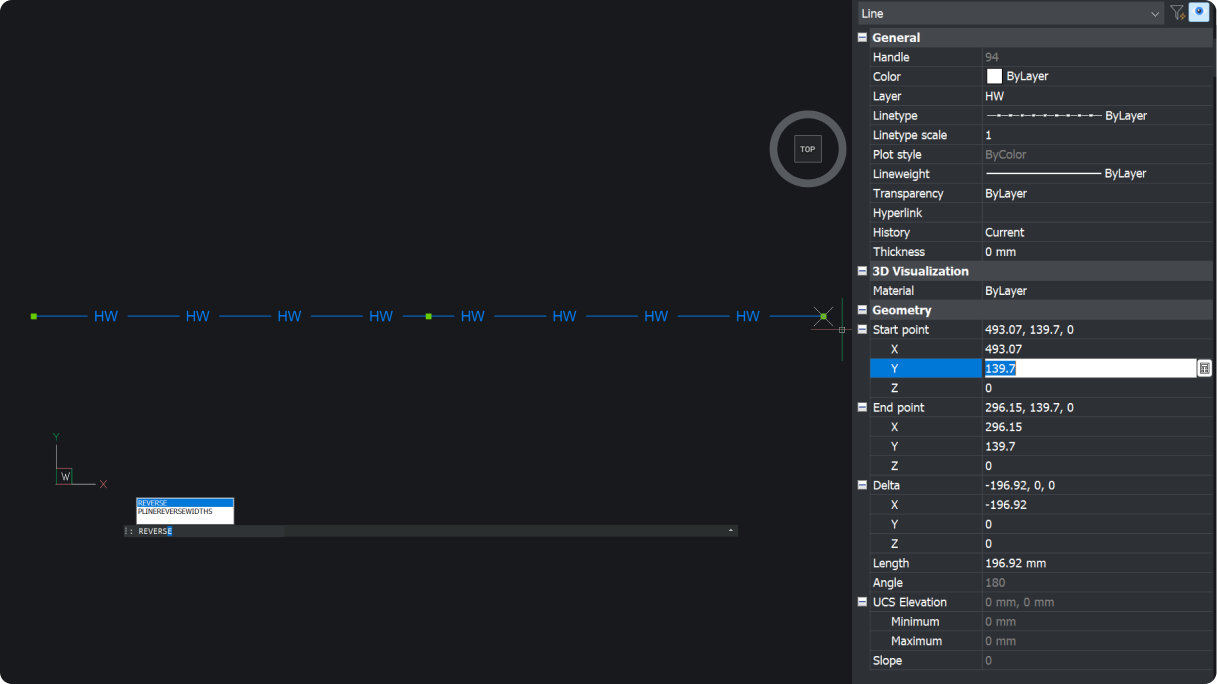

Reverse the direction of lines, polylines, splines, and helixes, making it easier to read text where directionality matters.

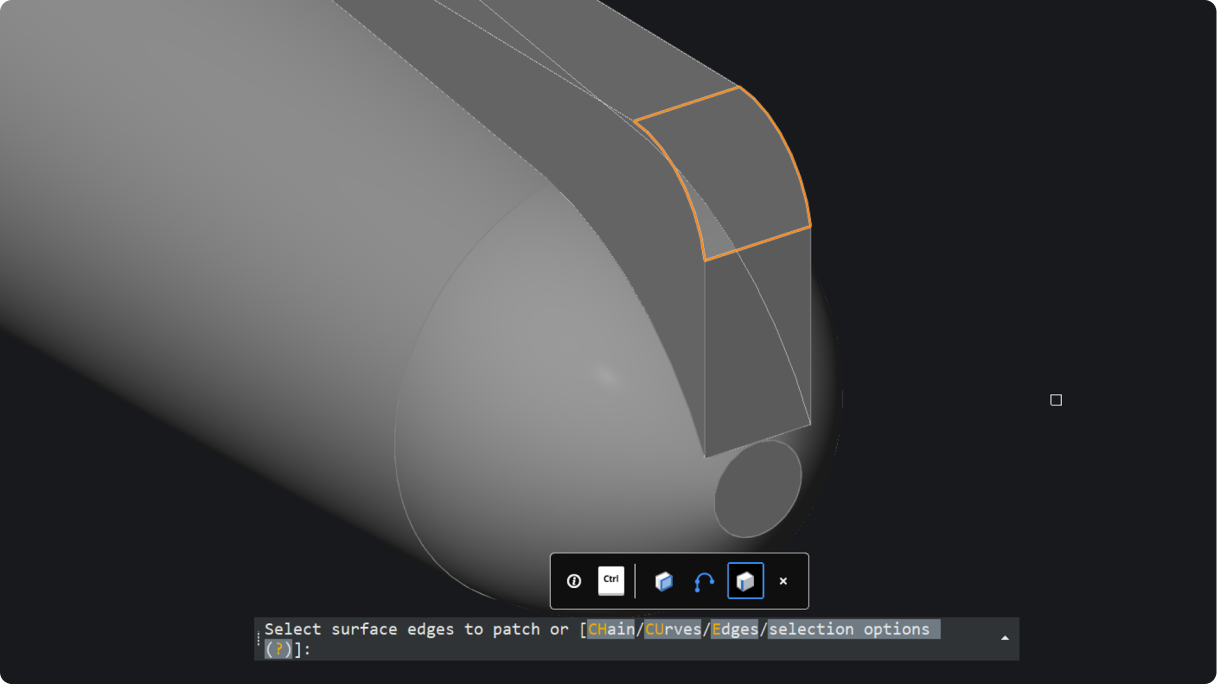

Repair open boundaries of surfaces with continuity control to create solids from mesh data (SURFPATCH).

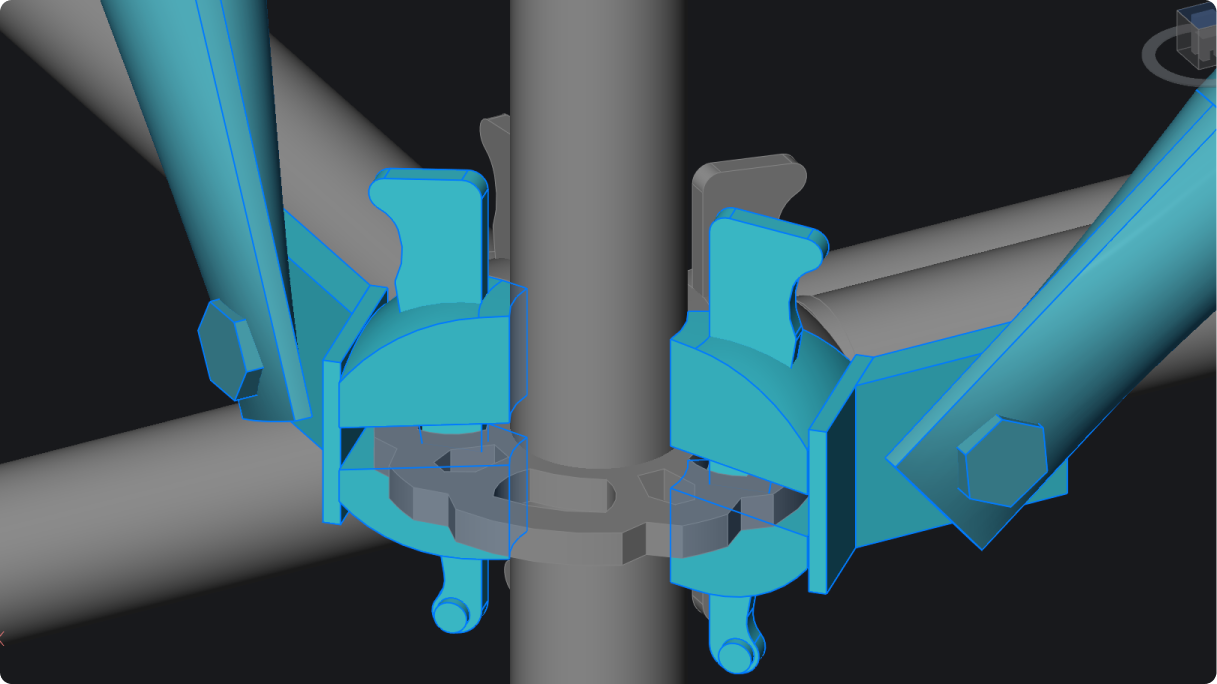

Intuitive UI to apply filters, query data, and manage results. Inspect and delete interferences by isolating them in model space.

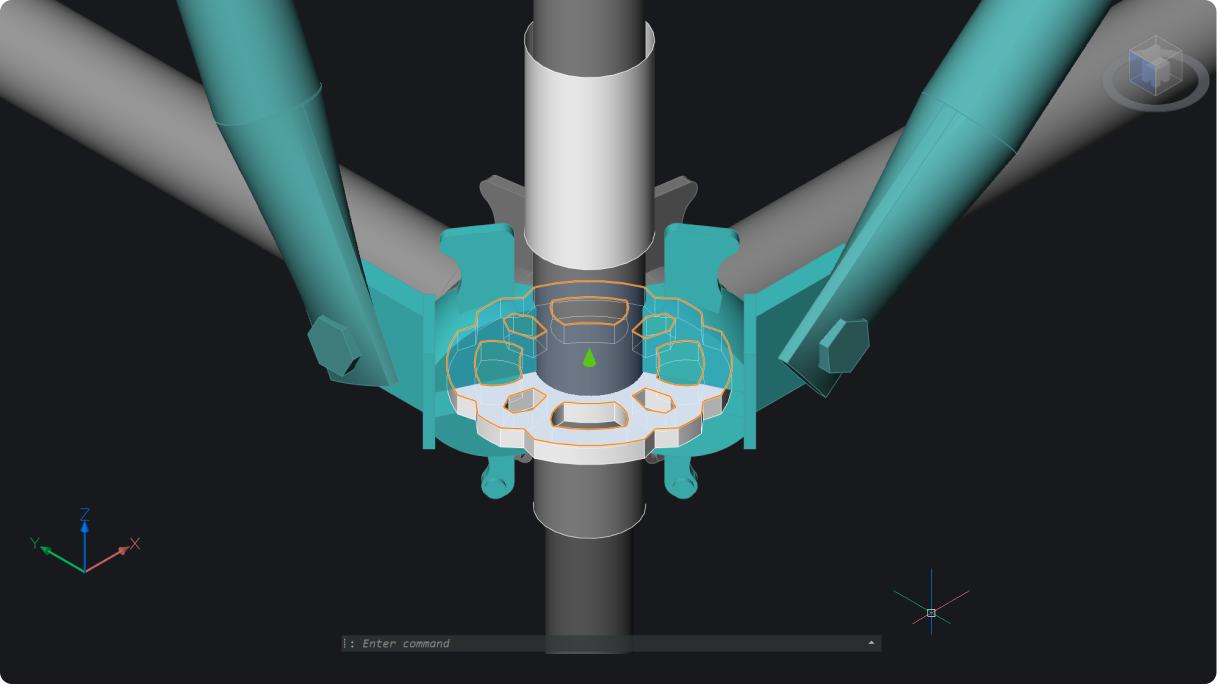

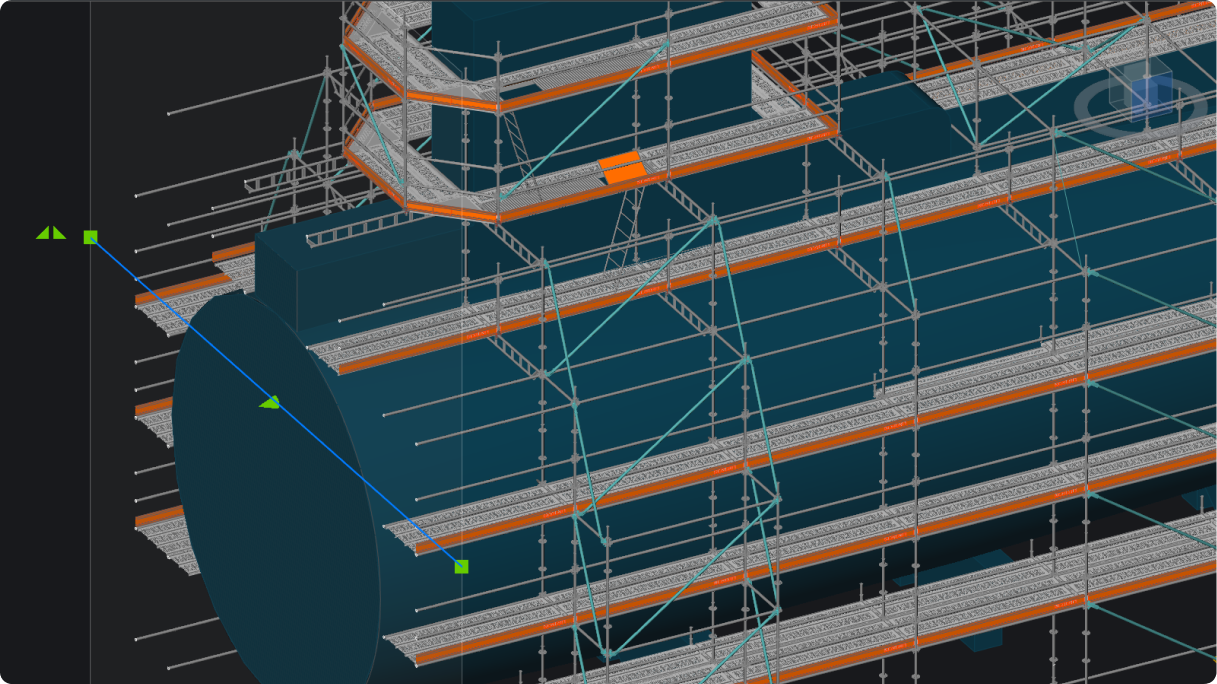

Increased precision when sectioning models with adjustable grips. Change the section type and depth from the properties panel.

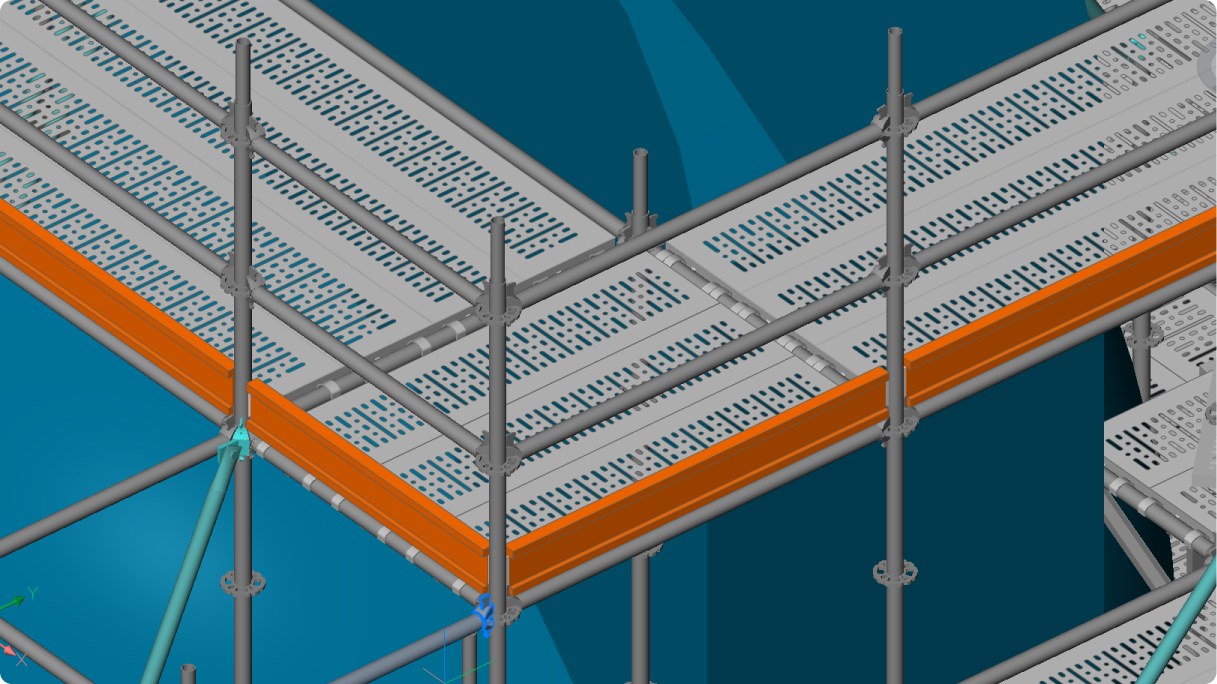

Attribute positions, orientations, and property changes are automatically synchronized when related parameters are modified.

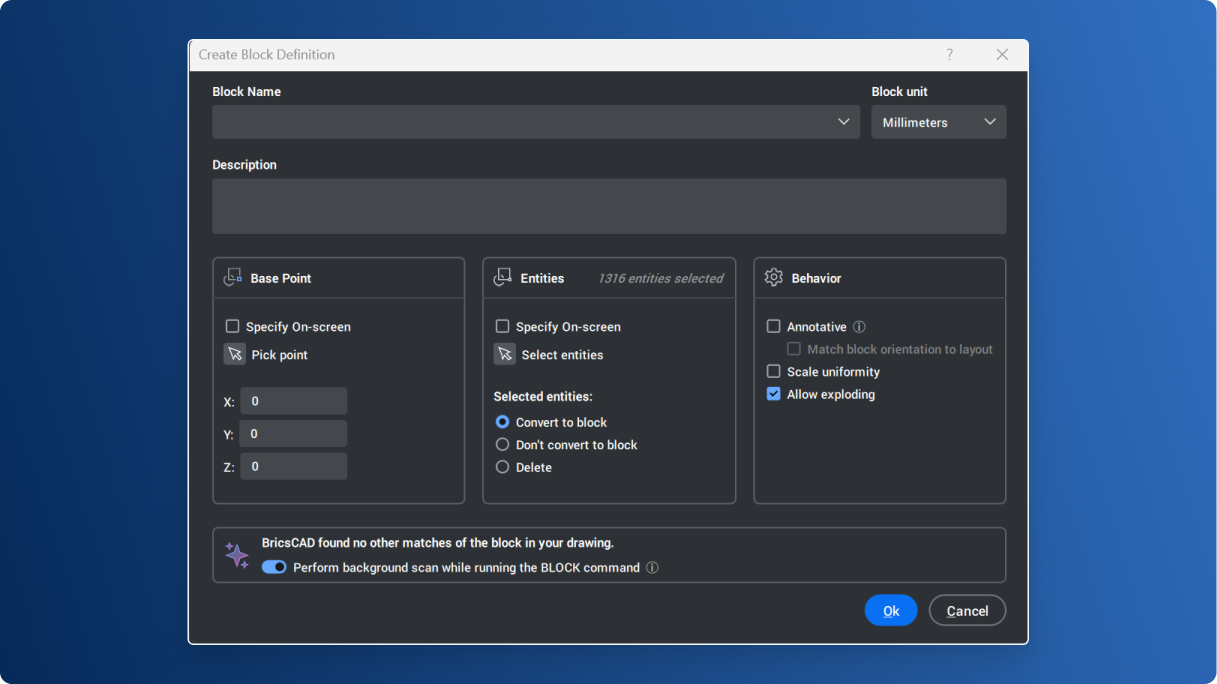

Run Blockify within the Create Block Definition dialog box. Create new block definitions and check for exisiting blocks available for reuse.

Unique to BricsCAD

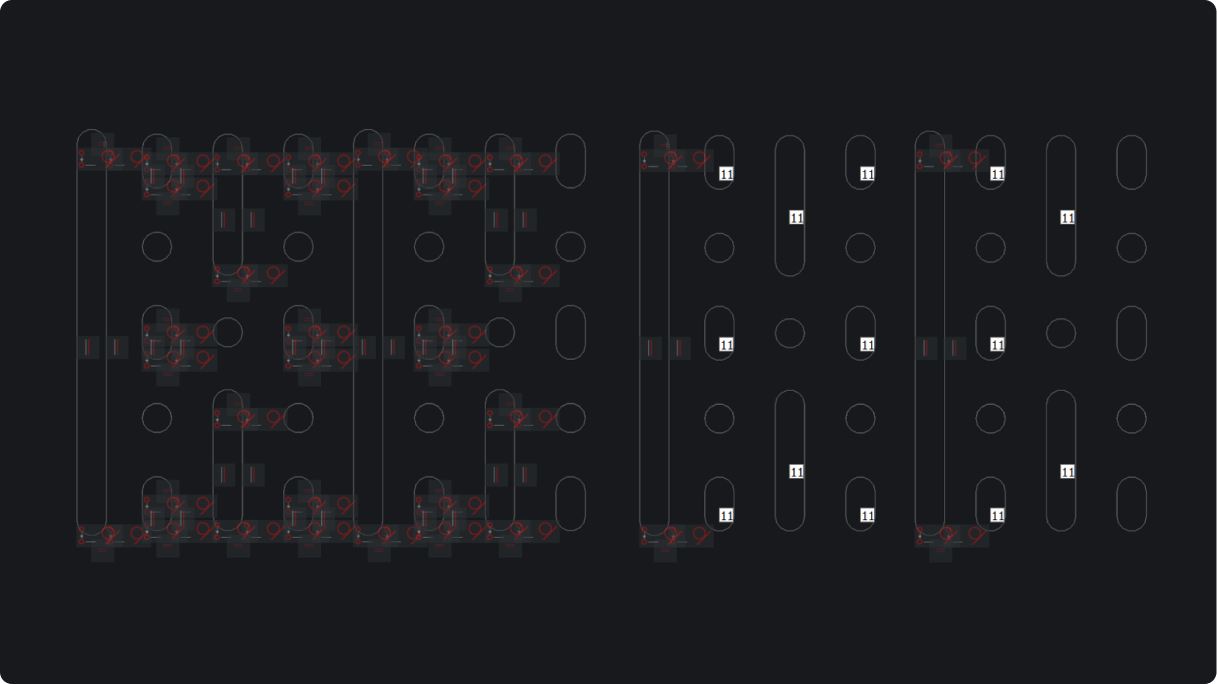

Group symbols to boost performance and clarity in complex drawings.

Unique to BricsCAD

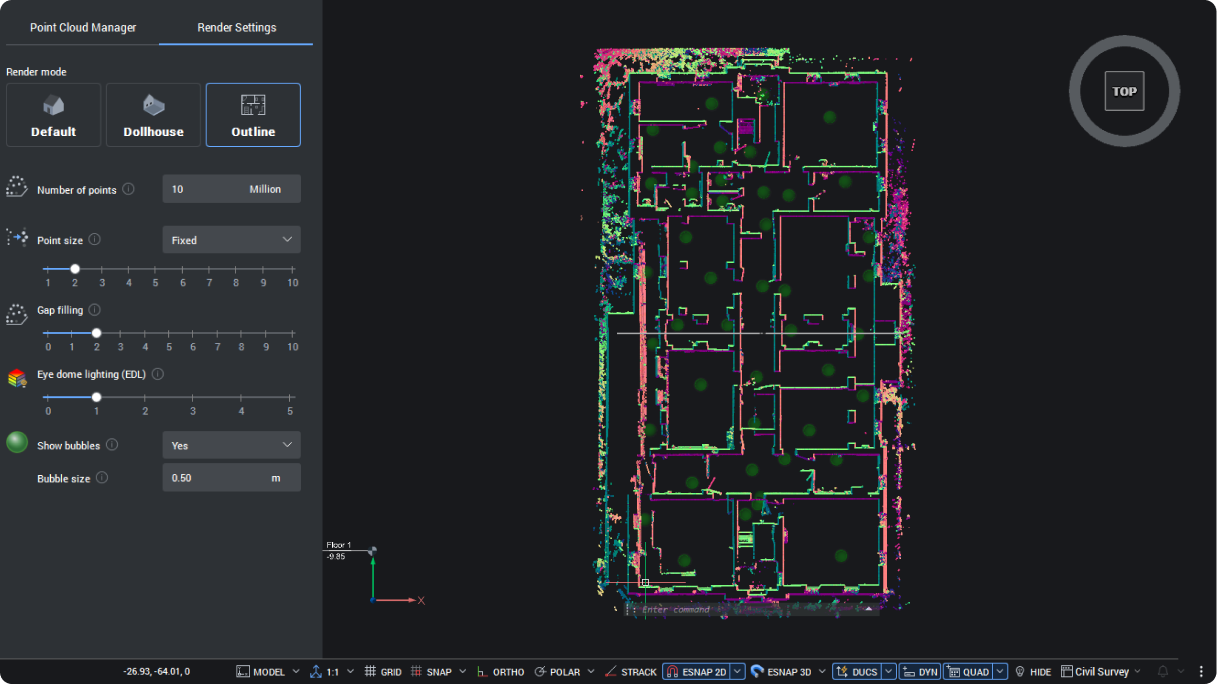

Highlight the outer shape of point clouds with the new Outline filter for clearer visualization.

Unique to BricsCAD

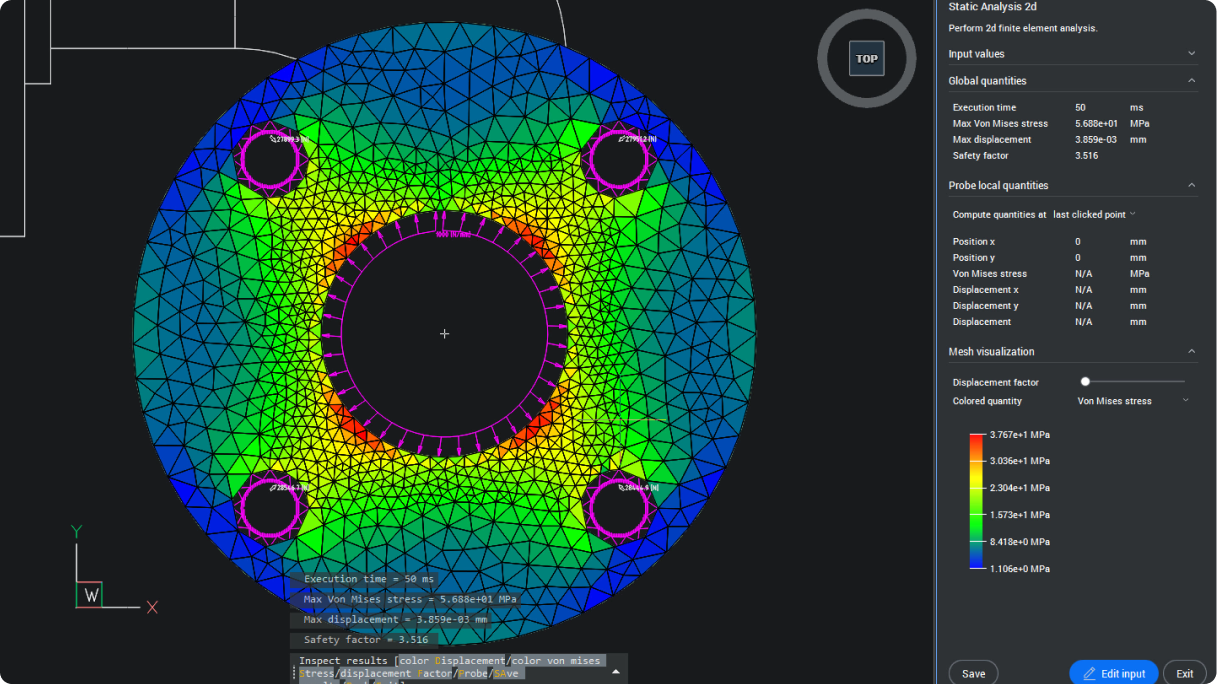

Edit 2D FEA objects with fewer clicks. View reaction forces, reuse setups, and zoom-highlight for faster analysis.

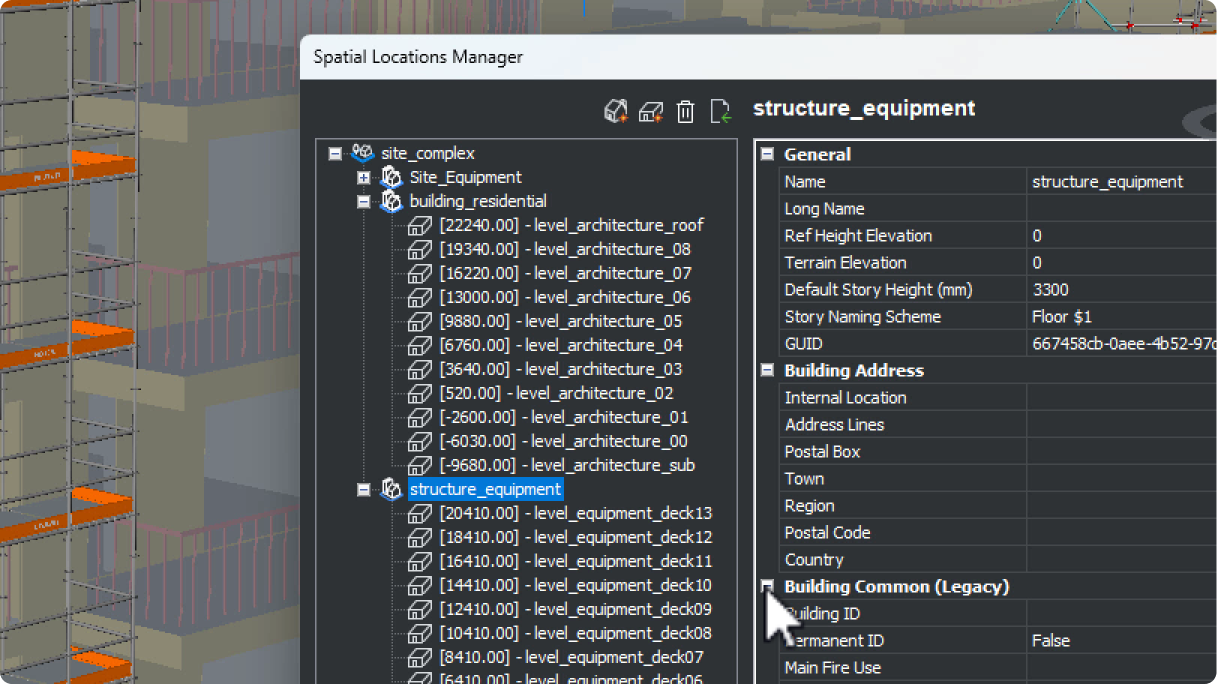

Work efficiently across users and teams with better access to shared project data, like spatial locations and compositions.

Unique to BricsCAD

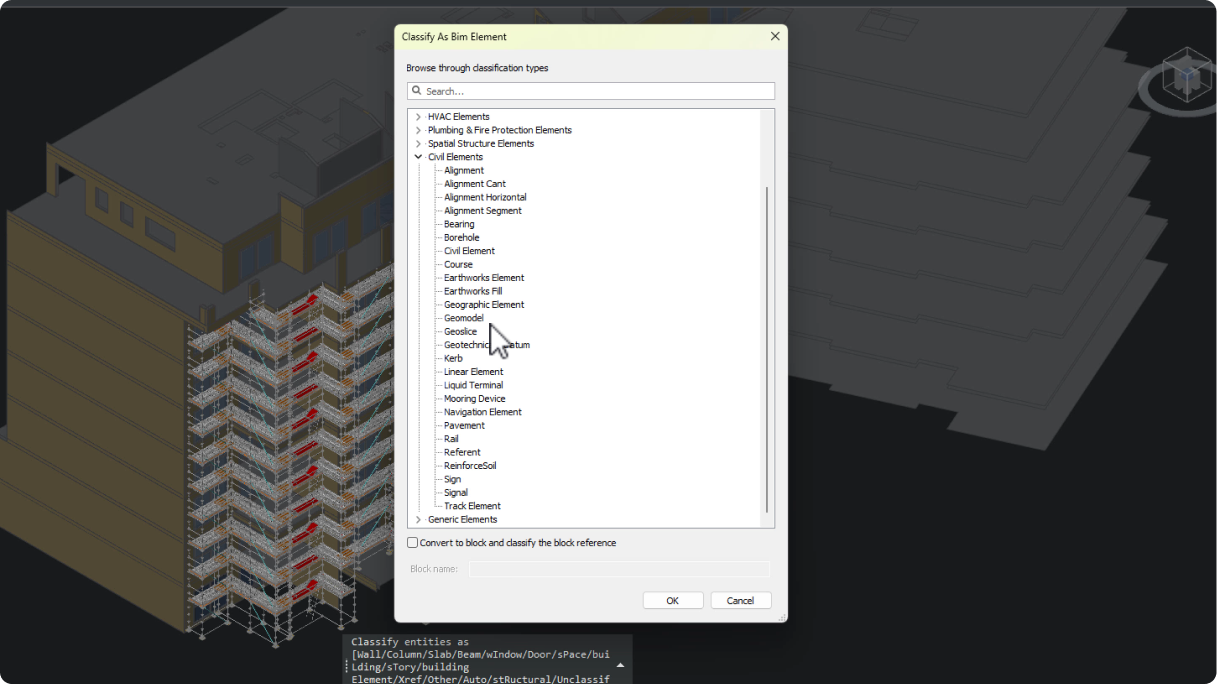

Classify project data to be more closely aligned with industry standard classification schemas.

Unique to BricsCAD

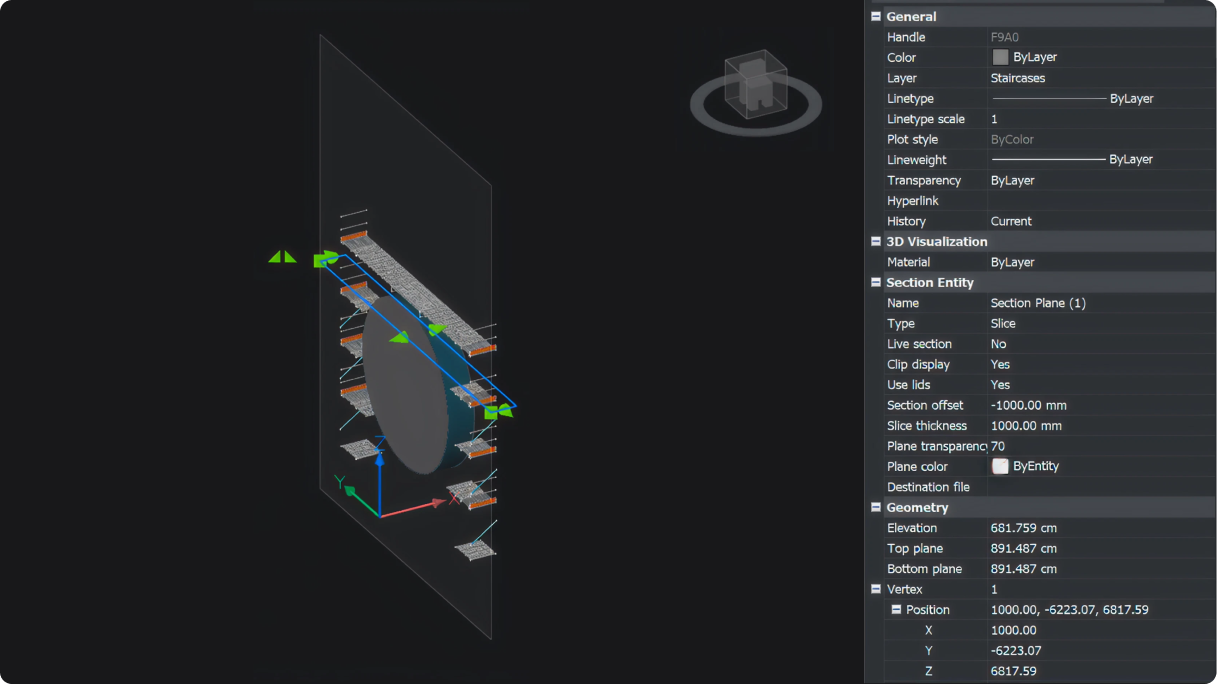

View a sliced section of a 3D model within a specified boundary with editable thickness and offset position.

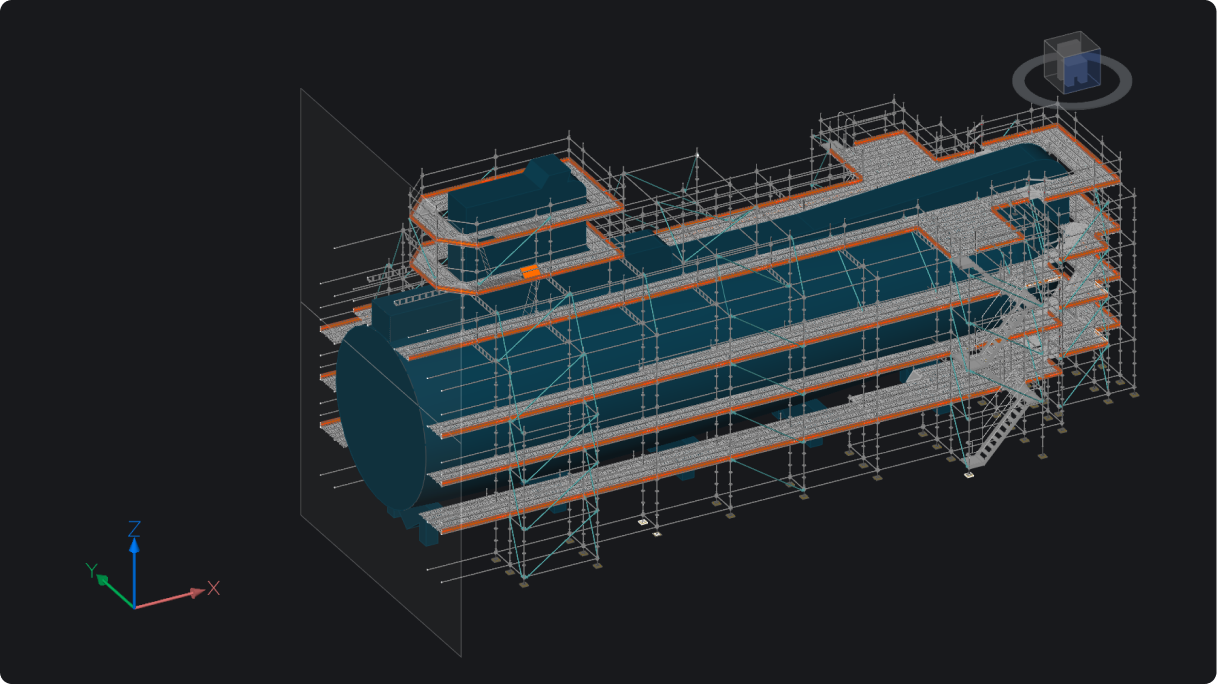

Ability to toggle on and off the display section planes within 3D model view based on section type.

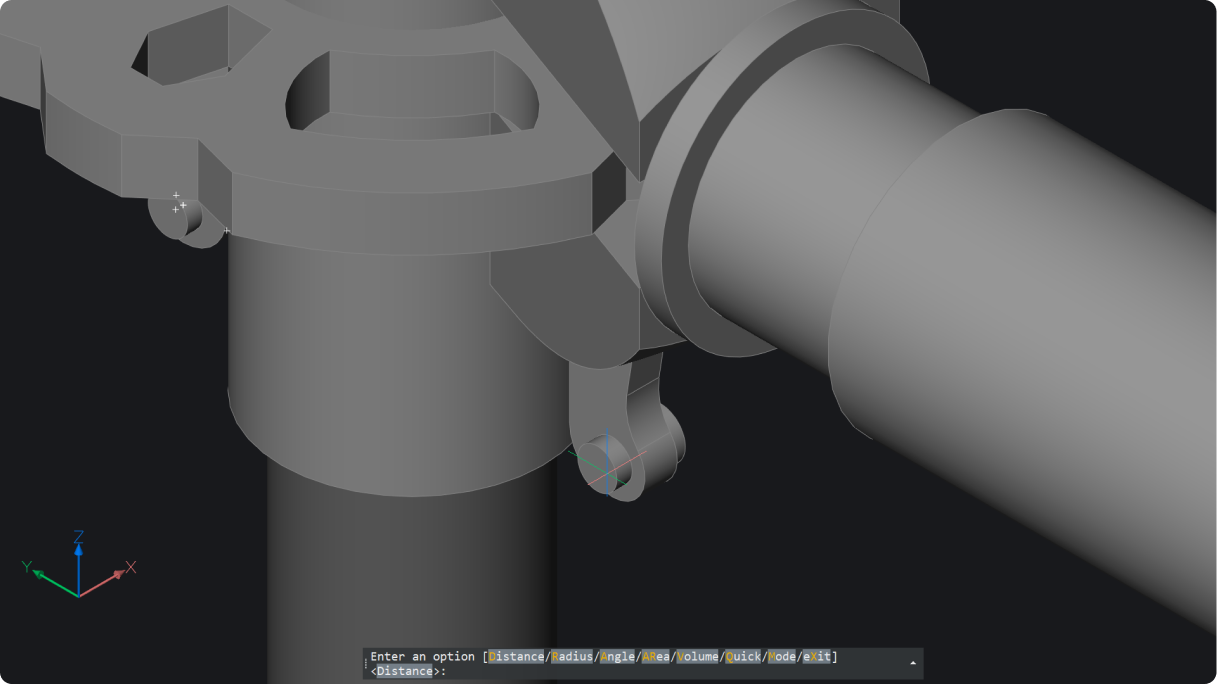

Measure 2D and 3D distances, radii, angles, areas, and volumes (MEASUREGEOM). Results appear in command prompt and dynamic tooltip.

Easier to dynamically manipulate section cuts through 3D solids.

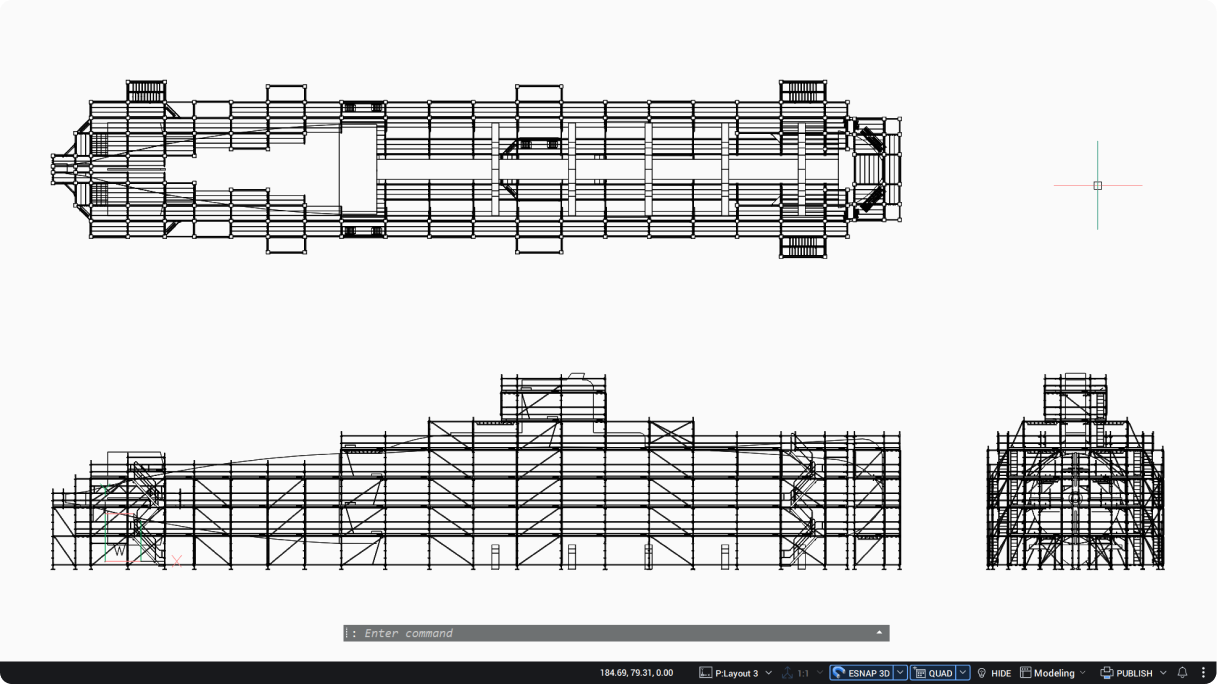

Continue working while generating additional drawing views.

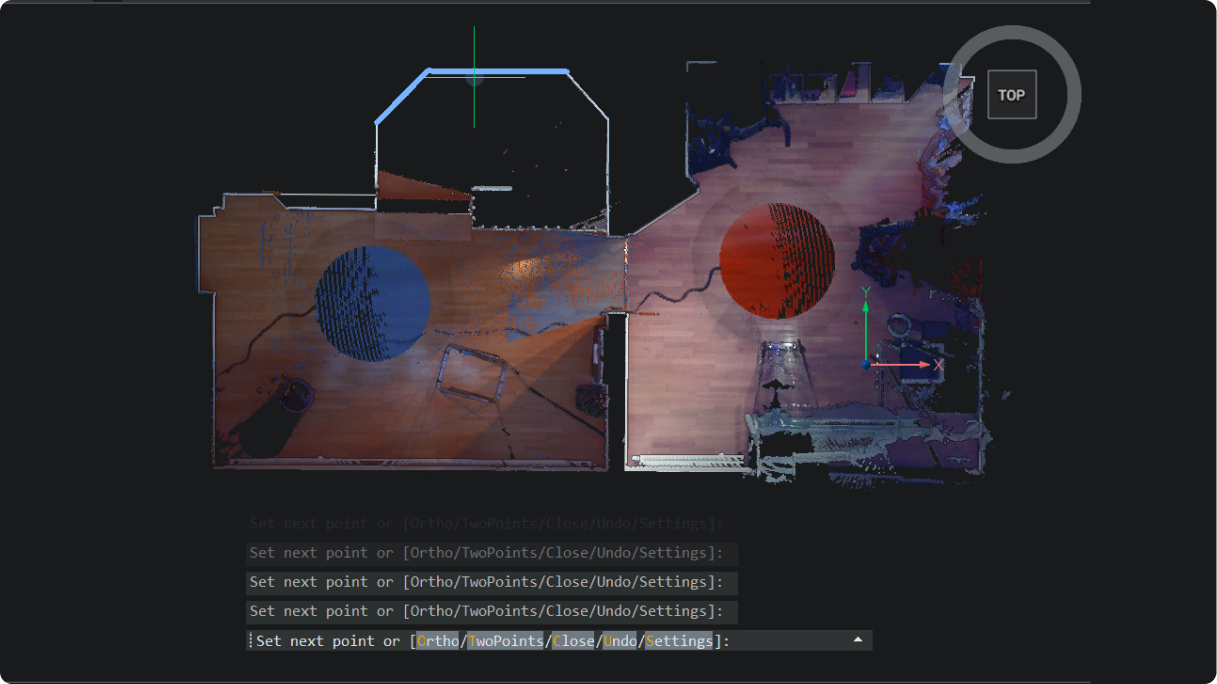

Easily trace polylines over point clouds with one click per segment for fast, accurate linework (POINTCLOUDTRACE).

Unique to BricsCAD

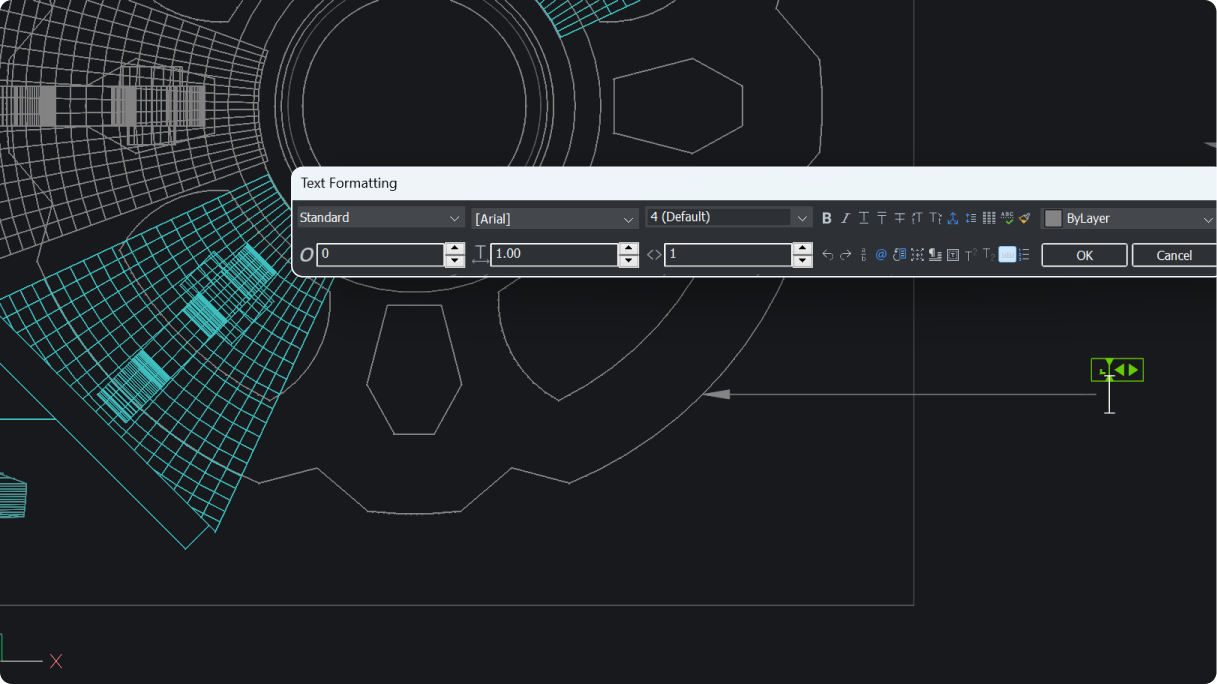

New functionality added to MLEADER command. Add temporary ortho alignment (press and hold Shift key) for easier leader placement.

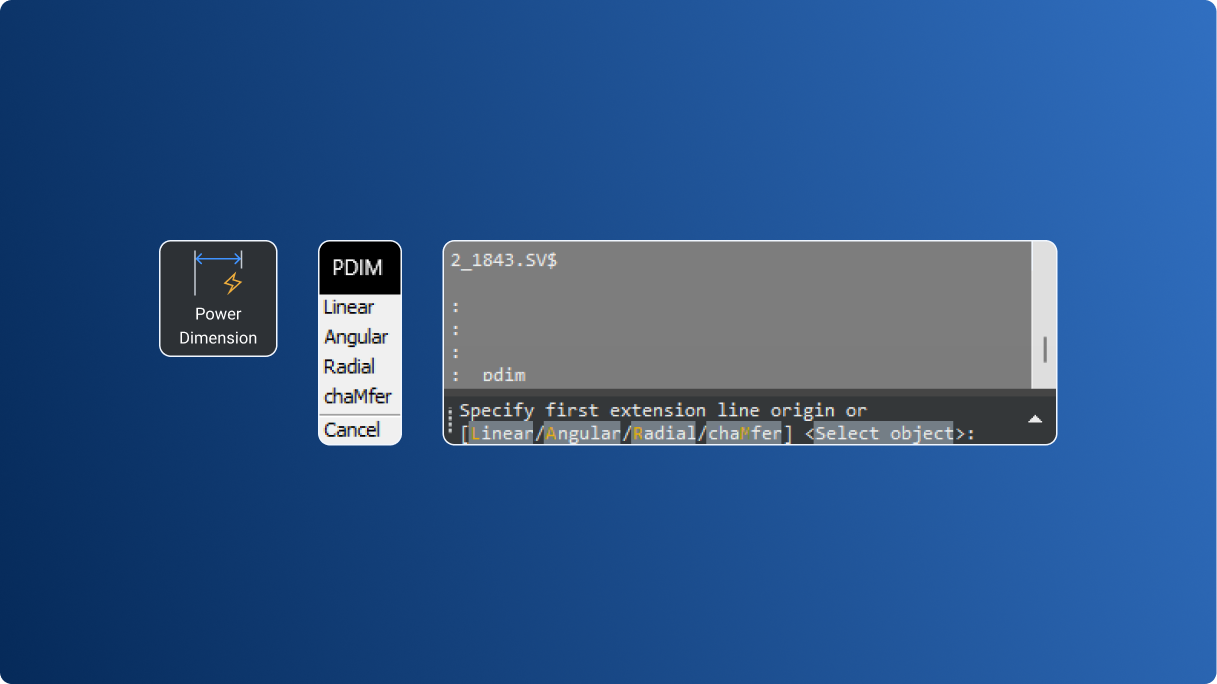

Smarter commands and advanced UI make power dimensioning faster and more accurate.

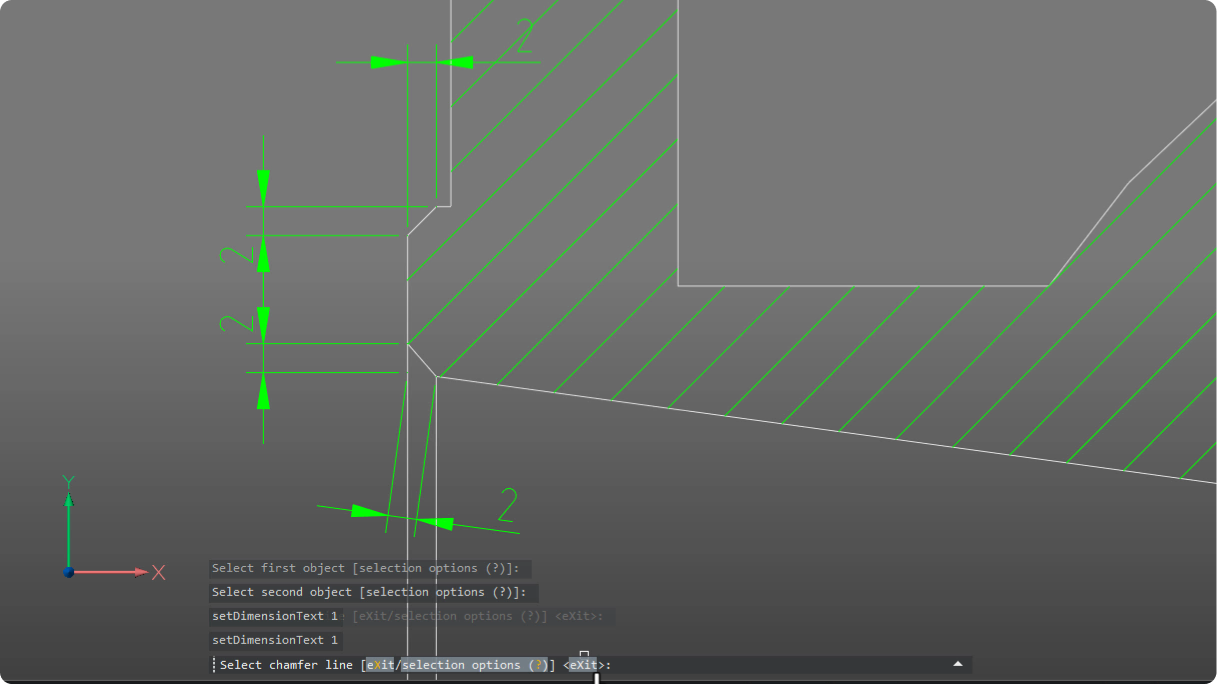

Save time with automated chamfer dimensions. Select the chamfer and edges to instantly create two clear linear measurements.
